Power Distribution Solutions

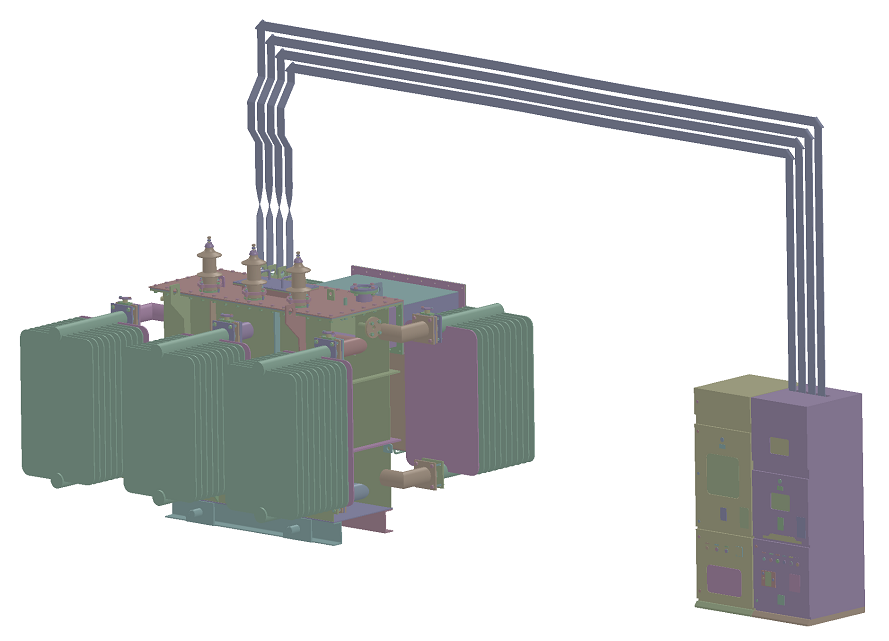

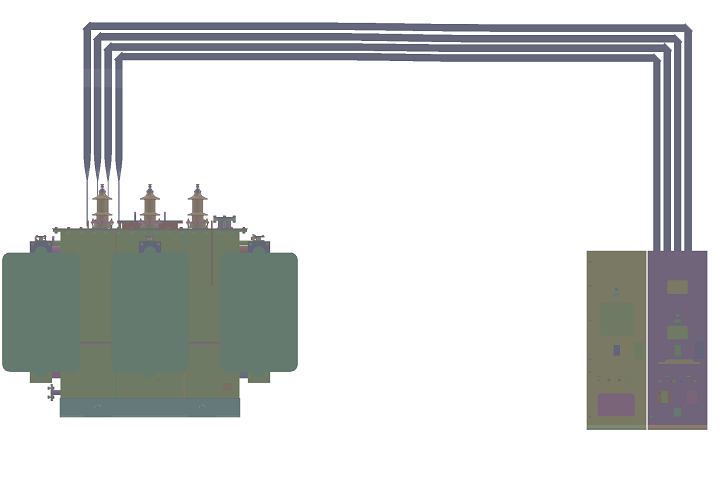

Renxin FleXbus Conductor is an innovative and patented lowvoltage power distribution solution designed to provide safe, reliable, and flexible electrical connections between power equipment such as:
The FleXbus system is engineered to simplify installation, reduce total implementation cost, and improve reliability for modern power distribution applications
FleXbus

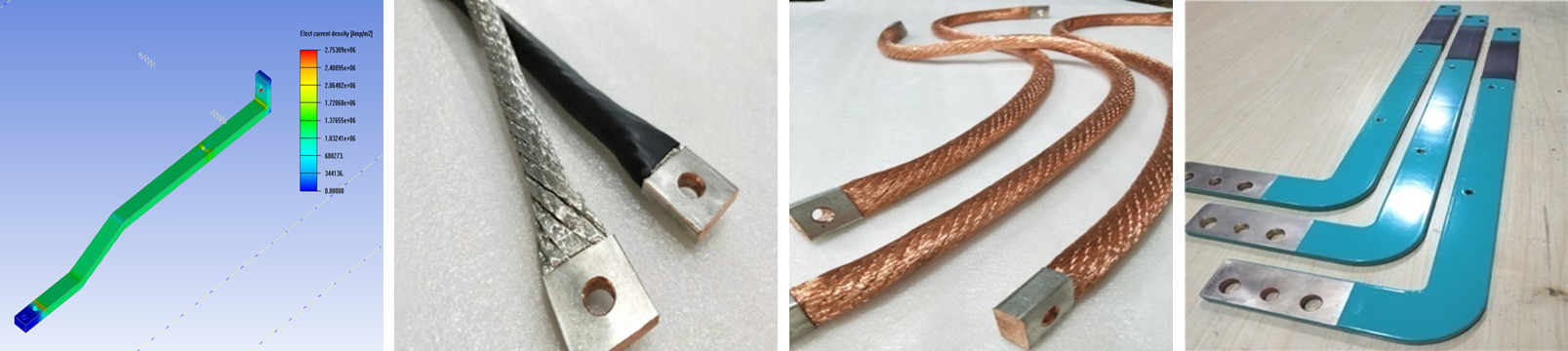

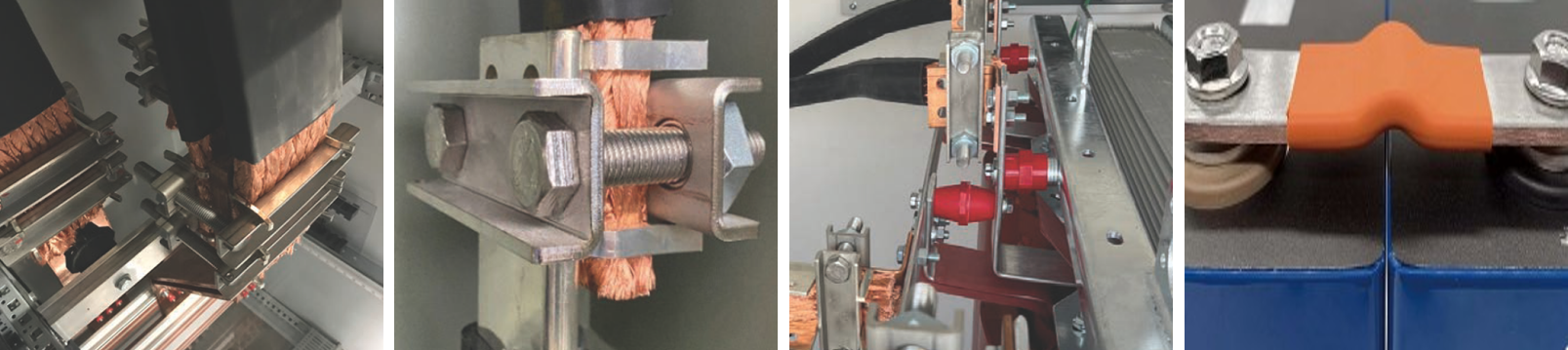

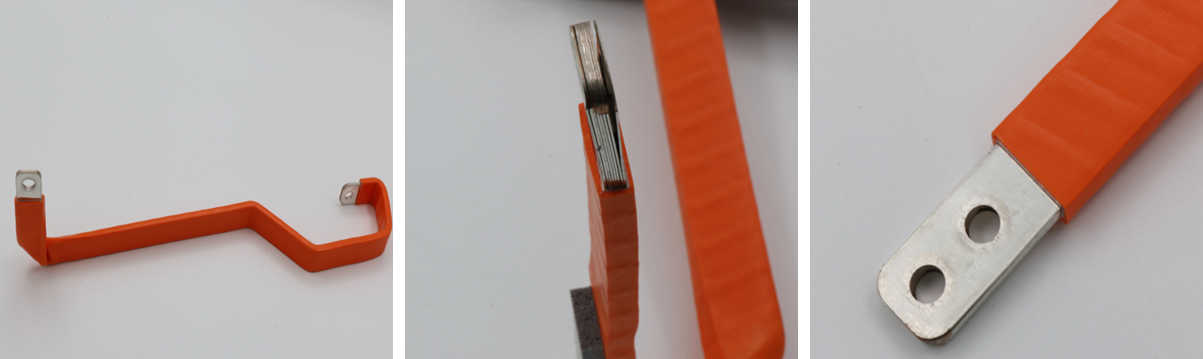

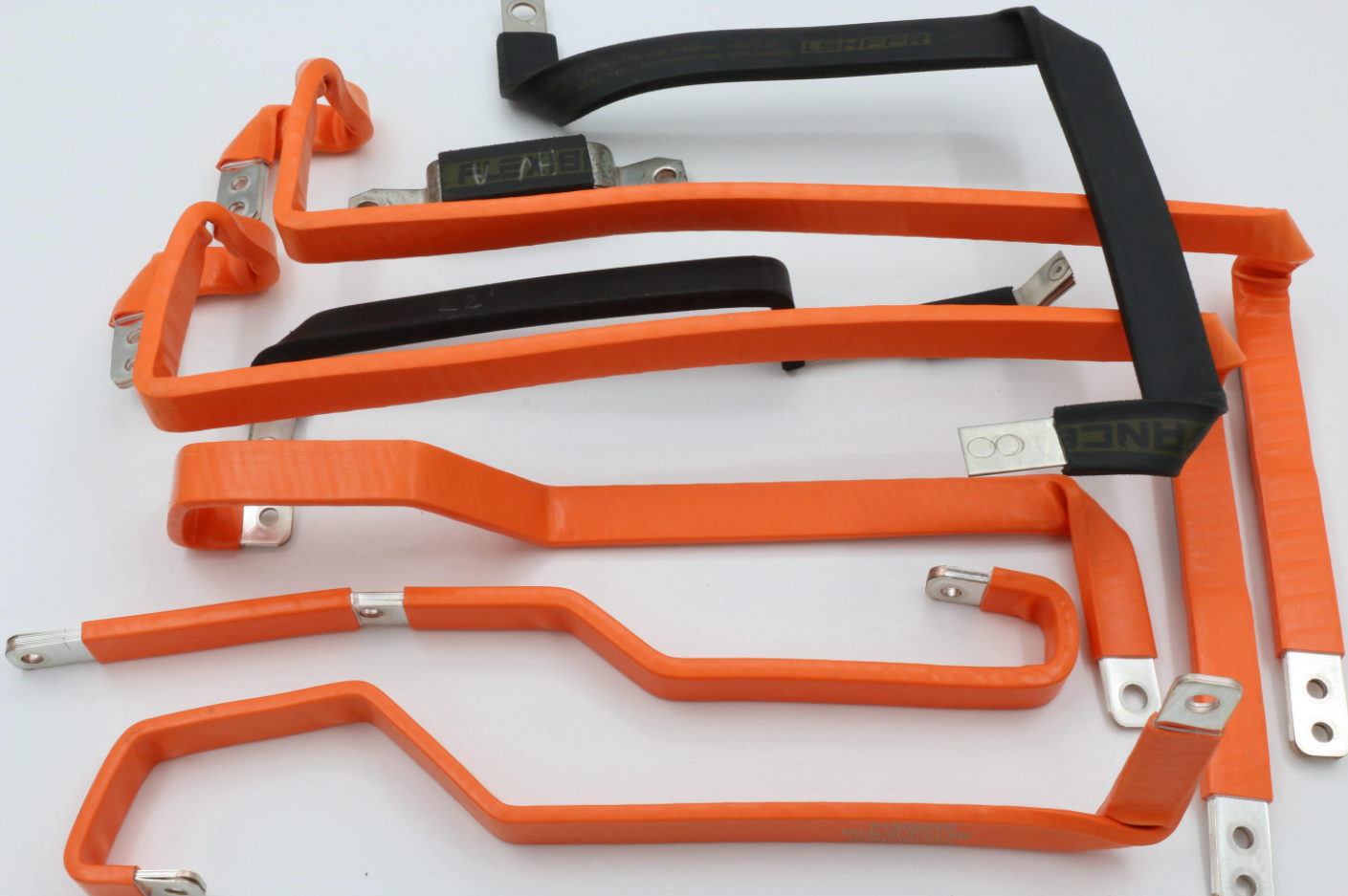

Flexbus System OverviewRenxin ERIFLEX FleXbus Conductor is a readytouse flexible power conductor with direct connection capability to busbars or circuit breaker terminals
The conductor utilizes:
combined with advanced:
This unique conductor structure provides significantly greater flexibility compared with conventional power cables while maintaining excellent current carrying capability
Available conductor lengths: 80mm ~ 25 meters
Application current range: 200 A ~ 5500A

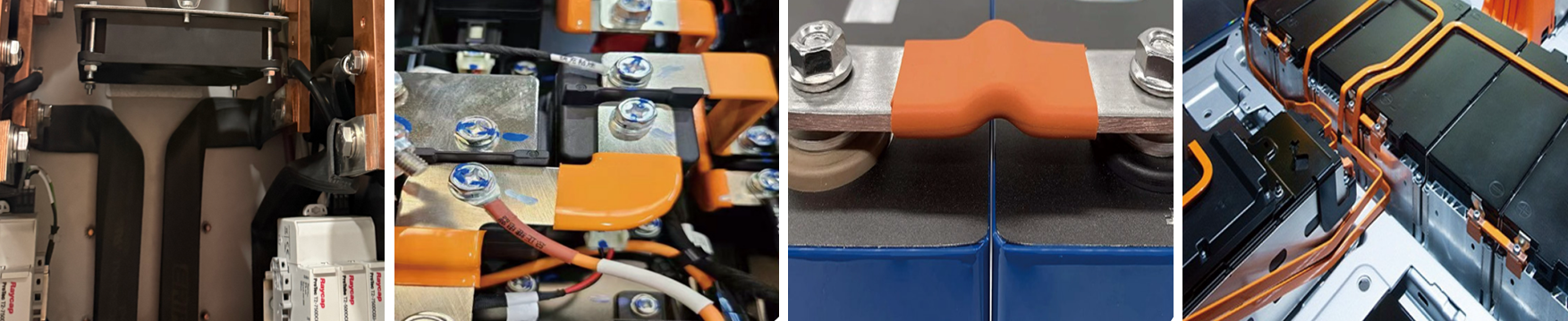

The system supports:

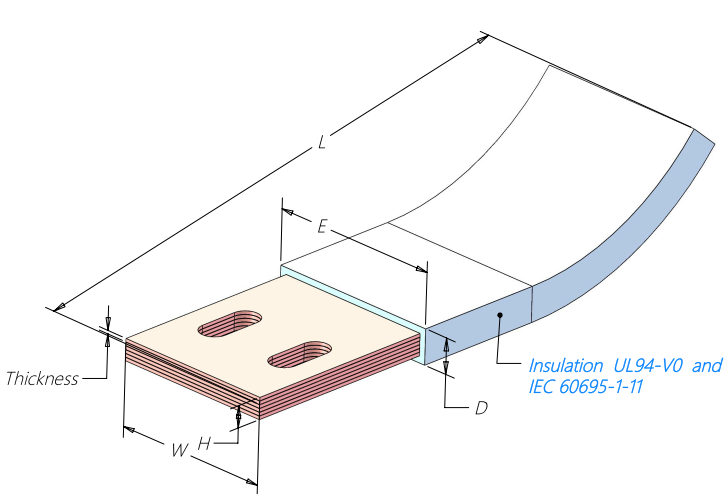

Flexible conductor technical configuration| Parameter | Specification |
|---|---|
| Dielectric Strength | 20kV/mm |
| Nominal Voltage | 1000V / 1500V |
| Maximum Working Voltage | 6000V |
| Operating Temperature | 58°F to 239°F |
| Insulation Elongation | ≥ 500% |
| Material | Copper Clad Aluminum， 90% Alu/10% Copper Electrolytic copper Cu-ETP 99.9% purity |
| Maximum Resistivity at 20°C | ≤0.027 ohms.mm 2 /m |
| Connector Finish | TinPlated |
| Flammability Rating | UL94 V0 |
Renxin provides complete engineering and manufacturing support for lowvoltage power distribution systems, including:
Our engineering team collaborates closely with customers from concept development through final production and installation
Work with the Renxin engineering team to develop:
designed to improve:
Design flexibility, ideation and prototyping for compact power distribution systems
Customers submit application requirements and our engineering team collaborates to identify the optimal technical solution.
The engineering team supports the project from design concept through prototype validation to ensure manufacturability and performance reliability.
Once the design is finalized, our sales and supply chain teams coordinate manufacturing capacity and delivery planning to support customer demand forecasts.
Renxin provides:
Our technical team remains involved throughout the full project lifecycle, including:

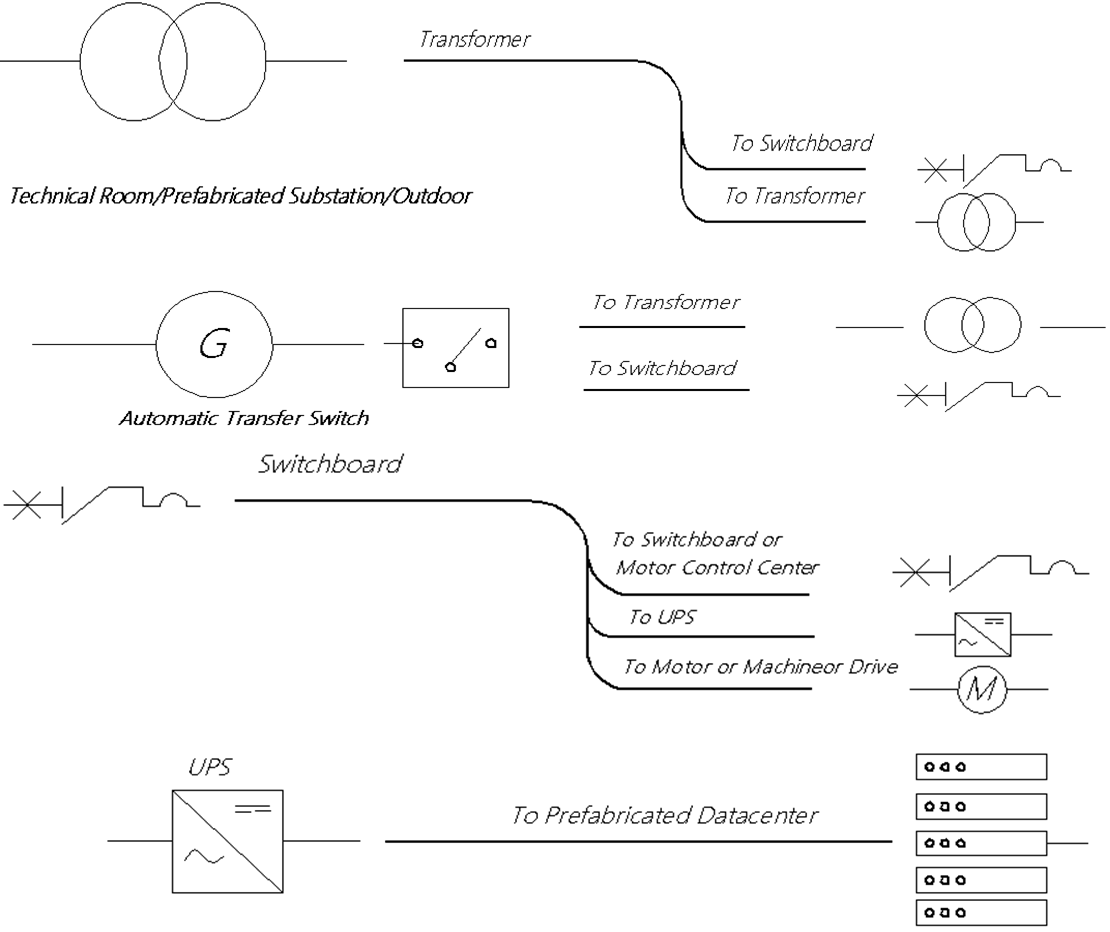

The FleXbus lowvoltage power connection system is designed for multiple industrial and energy applications, including:
With advanced engineering expertise, flexible manufacturing capability, and strong application experience, Renxin delivers complete lowvoltage power distribution solutions for modern industrial, transportation, and energy infrastructure applications
