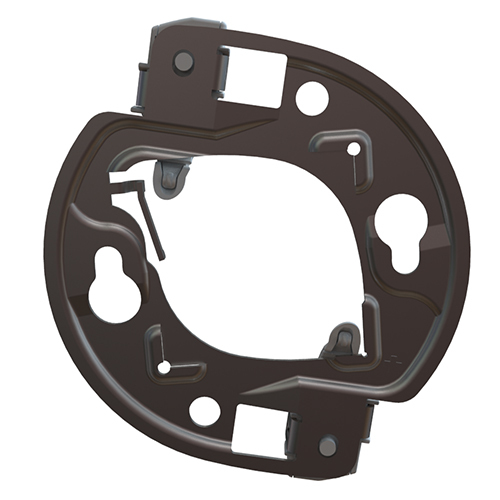

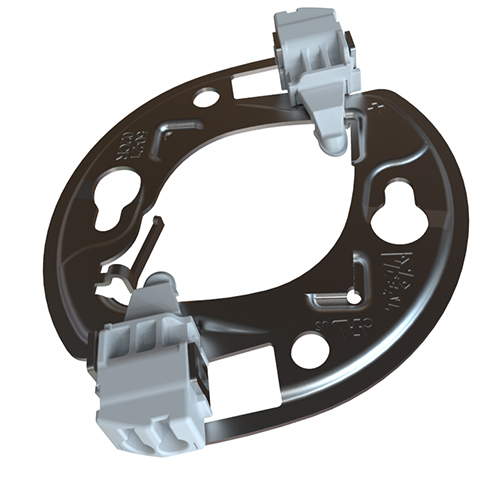

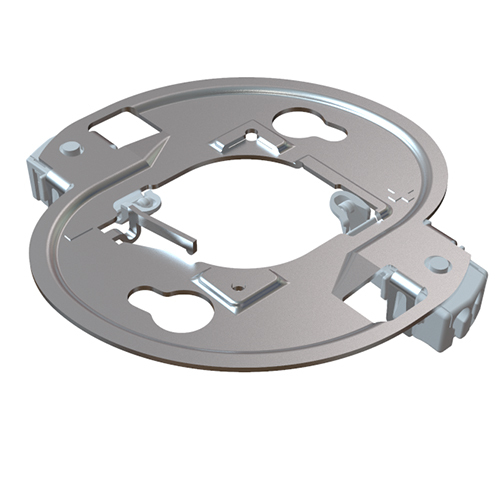

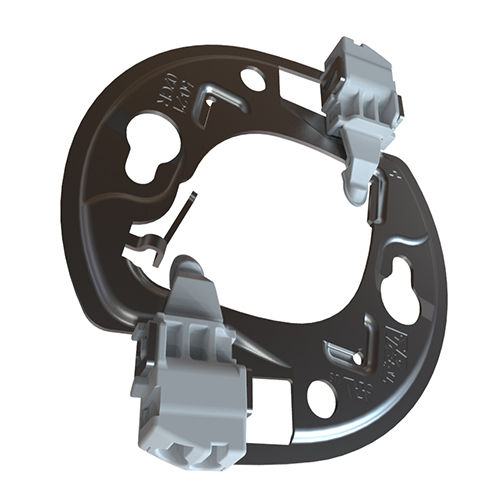

RX621-014-19 Chip-Lok COB Array Helder

Item No.: RX621-014-19
Cob holding arm secures array to holder for ease of installation
Description

-Metal holder base is resistant to creep to prevent thermal and electrical issues typical at elevated operating temperatures over time
-Cob holding arm secures array to holder for ease of installation
-Keyways allow for pre-installation of screws to ease assembly and minimize damage to phosphor
-Touch-safe design is ul recognized for 250v to allow use in daisy chained applications
-Stainless steel body provides additional heat sinking paths to allow array to run cooler compared with screws and plastic holders

COB  Chip                                                                                                                                 35mm CXB35
Voltage:                                                                                                                                      250 V (max)
Current:                                                                                                                                         4 A max
Diameter:                                                                                                                              2.56 in (65.0 mm)
Height:                                                                                                                              0.27 in (6.98 mm) max
Weight:                                                                                                                               0.39 oz (10.3 grams)
Screw size:                                                                                                                                 #5-40 (M3)
Screw torque:                                                                                                                    5 in-lb( 0.5 nm) max
Screw circle dia:                                                                                                                   1.97 in (50.0 mm)
Wire strip length:                                                                                                                1/4"-5/16" (7 mm)

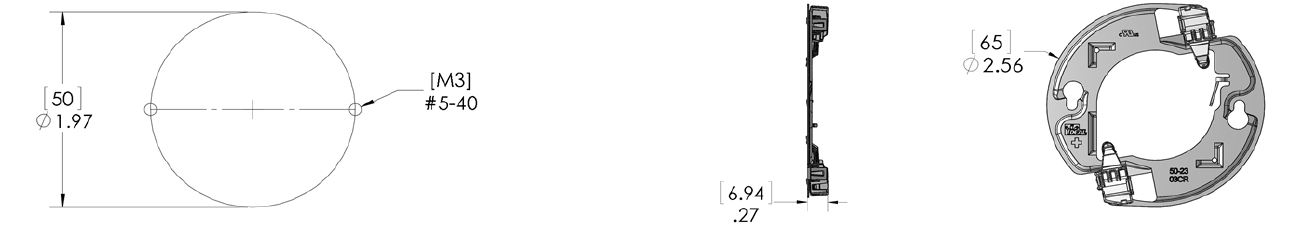

Dimensions

Service
Download Drawing format (such as PDF, CAD)




Thank you for choosing to incorporate the LED light series, If you need assistance, Renxin Thermal will support you with:
  • Engineering assistance for product design and manufacturability,
  • Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
  • About  Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support   : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
