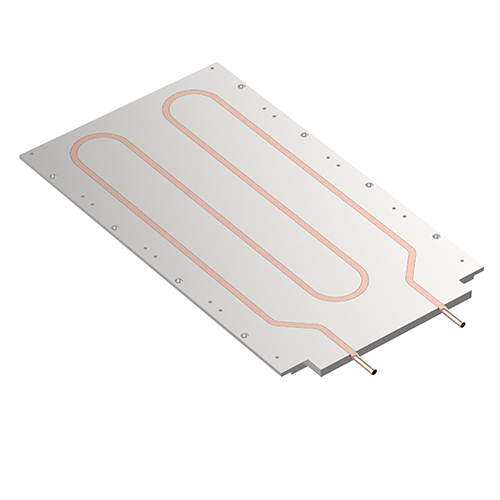

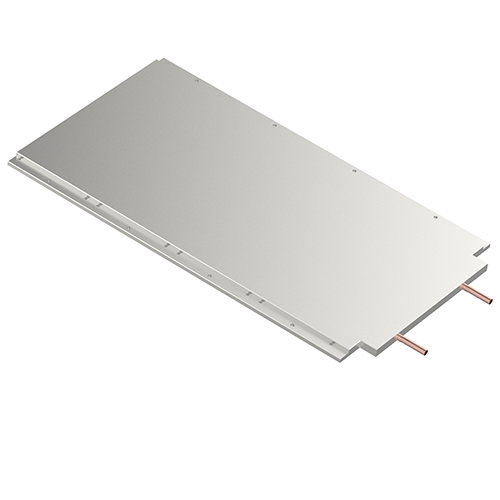

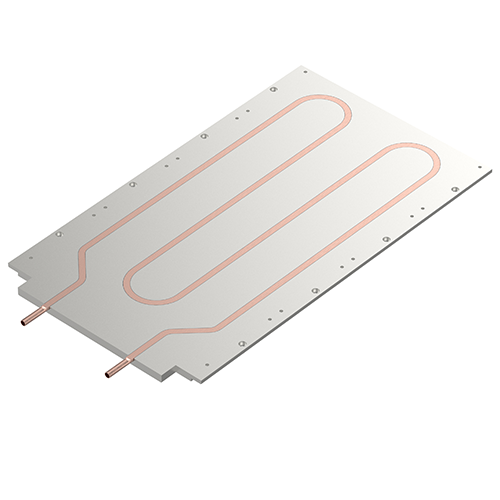

Cold plate copper pipe cooling channel Ф8.0[0.31]x390 [13.35]x 685 [26.97] for IGBT module

Item No.: RX615-022-19
The Cold Plate Copper Pipe Cooling Channel (480031X390-1335X-685-2697) is designed to effectively dissipate heat from high-performance electronic components such as IGBT modules. This precision-engineered cooling solution is made from high-quality copper
Description
Overview
PN:                                                                                                                                                                                            RX615-022-19
Description:                                                                                                         Cold plate copper pipe cooling channel  Ф8.0[0.31]x390 [13.35]x 685 [26.97] for IGBT module
Thermal resistance:                                                                                                                                                                 0.013 - 0.006 K/W
Length:                                                                                                                                                                                      685 [26.97]
Width:                                                                                                                                                                                          390  [15.35]
Thickness:                                                                                                                                                                                   15    [0.59]
liquid channel  Area mm²:                                                                                                                                                         50.26  mm²
liquid channel :                                                                                                                                                                           Copper Pipe
Extruded Profile Area mm²:                                                                                                                                                       744,172.669  mm²
General surface                                                                                                                                       raw degreased aluminium (by the metre raw aluminium)
Weight:                                                                                                                                                                                       10.37  kg/meter
surfaces :                                                                                                                                                  anodized or  transparent passivated / Degreased
Manufacturer :                                                                                                                                                                       Renxin.Thermal

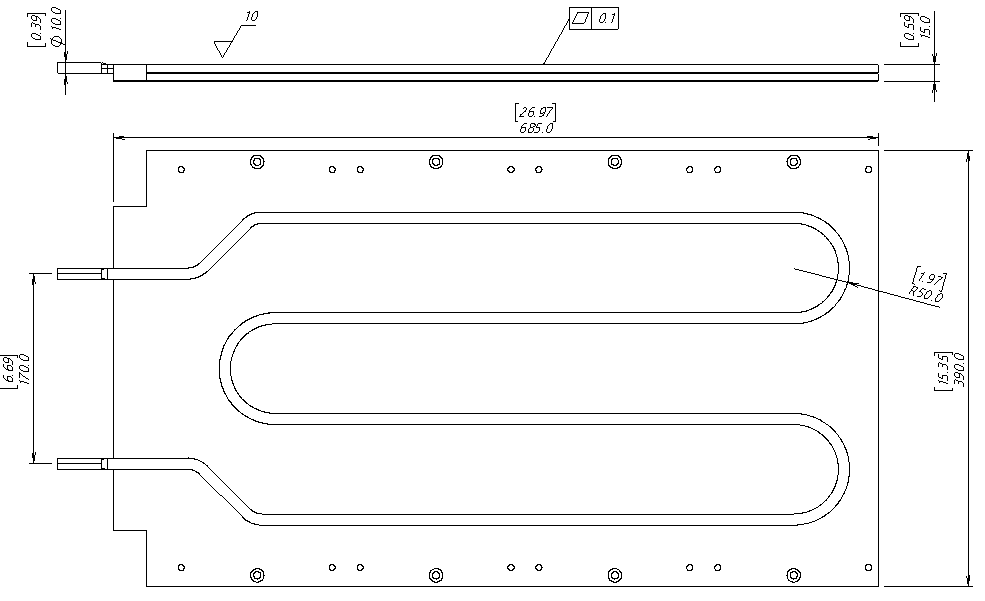

Drawing:

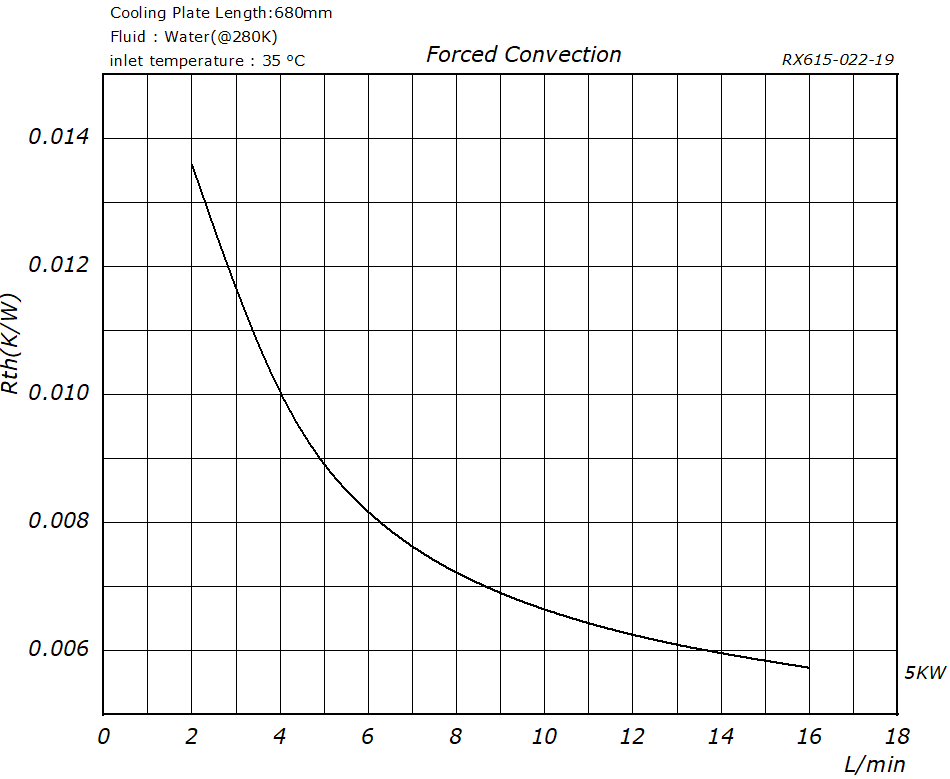

Rth(K/W)


The following is the fluid characteristics table for the designer's reference

Fluid  Freezing g point (°C) Fire Point(°C) Viscosity (kg/m.s) Thermalconductivity(w/m.k) specific heat(J/kg.k) Density(kg/m³)
Ethylene glycol/ Water (50:50) -37.8 _ 0.0038 0.37 3285 1087
Tri- ethylene glycol/Water (50:50) -35 _ 0.0064 0.36 3400 1062
CH3OH/Water (40:60) -40 29 0.002 0.4 3560 935
Ethanol/Water (44:56) -35 27 0.003 0.38 3500 927
CaFo/Water (40:60) -35 _ 0.0022 0.53 3200 1250
liquid metal(Ga-ln-Sn) ~-10 _ ~0.0022 ~39 ~366 5000~7000
Pure Water  0 _ 0.00086 0.614 4179 955.8
Air ( < 30°C) 0   0.0000186 0.027 1005 1.165
