RX640-011-19 CXB 3590 LED COB Chip

Item No.: RX640-011-19
The XLamp® CXB3590 LED Array is the brightest member of the second generation of the CXA family that delivers up to 30% higher efficacy and up to 20% higher lumens than the first generation in the same LES. The higher
performance second generation CXA
Description

The XLamp® CXB3590 LED Array is the brightest member of the second generation of the CXA family that delivers up to 30% higher efficacy and up to 20% higher lumens than the first
generation in the same LES. The higher performance second generation CXA LED Arrays provide a drop-in performance upgrade to existing CXA LED designs to shorten product development
time. Available in 2‑step, 3‑step and 5‑step EasyWhite® bins, the CXB3590 LED delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering.The CX Family LED Design Guide provides basic information on the requirements to use the CXB3590 LED  successfully in luminaire designs.

Viewing angle (FWHM)                                                                                                                                  115  degrees
ESD withstand voltage (HBM per Mil-Std-883D)                                                                                                 8,000 V
DC forward current (36 V)                                                                                                                                600mA
DC forward current (72 V)                                                                                                                               1800mA
Reverse current (36 V, 72 V )                                                                                                                           0.1mA
Forward voltage (36 V, @ 2400 mA, Tj = 85 °C)                                                                                                  36V
Forward voltage (72 V, @ 1200 mA, Tj = 85 °C)                                                                                                  72V

以上芯片所有参数,来源于科税的公布的产品参数。如果有任何问题,请与原厂或代理商联系,仁信精工实业有限公司不负责任何的损失。



Service

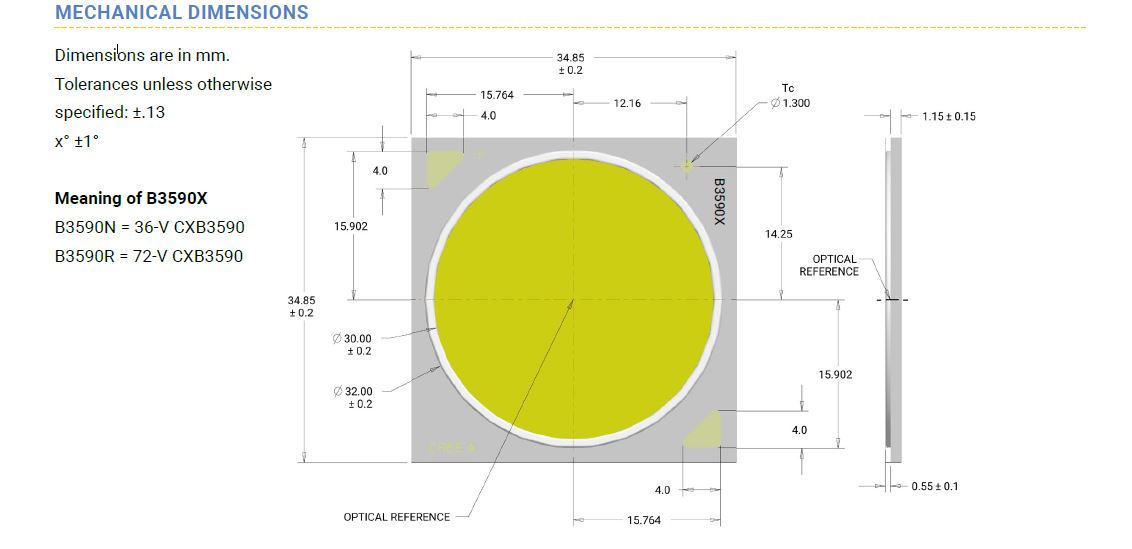

Download Drawing format (such as PDF, CAD)




Thank you for choosing to incorporate the LED Light series, If you need assistance, Renxin Thermal will support you with:
  • Engineering assistance for product design and manufacturability,
  • Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
  • Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support   : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
