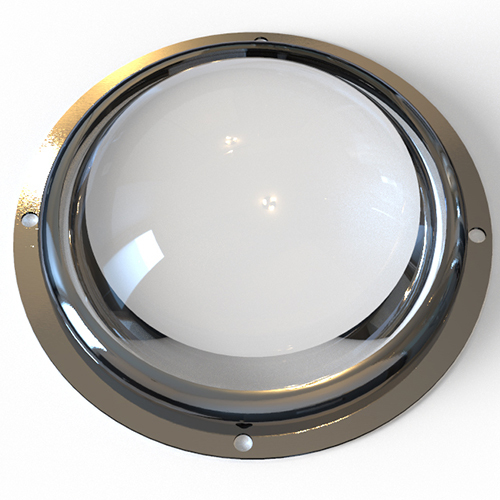

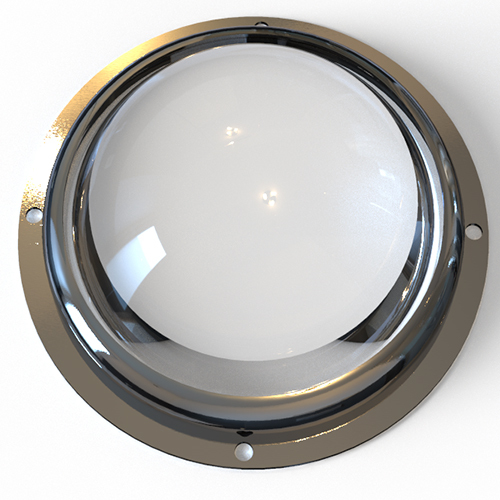

RX650-018-19 OD 78mmGlass Lens + Adaptor

RX650-018-19 OD 78mmGlass Lens + Adaptor

Name: RX650-018-19 OD 78mmGlass Lens + Adaptor
Brand: Renxin Thermal Technologies
SKU: RX650-018-19
Availability: InStock
Rating: 5 (1 reviews)

Item No.: RX650-018-19

The perfect secondary light distribution glass lens can not only filter out most glare, but also let the whole light's luminous efficiency higher than 91.8%, Material Borosilicate glass 3.3 is simply a different type of glass that is resistant to temperat

INQUIRY PDF Format

Description

Features

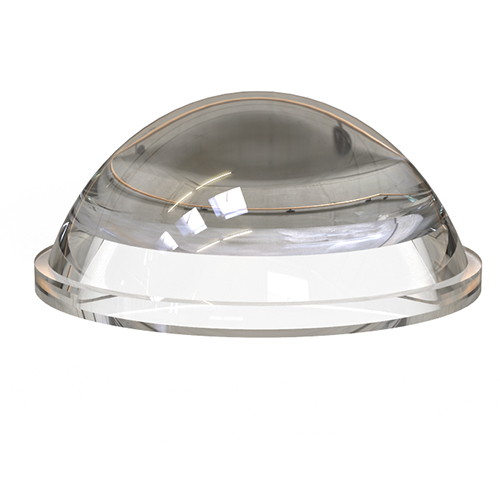

LED light adopts high-Intensity, heatproof glass lens which has good spotlight and long distance of radiation The perfect secondary light distribution glass lens can not only filter out most glare, but also let the whole light's luminous efficiency higher than 91.8%, Material Borosilicate glass 3.3 is simply a different type of glass that is resistant to temperature swings and scratching, temperature-resist grade is – 50°C to +520°C, It is applied to miner's lamp, street lamp, Flood light, Grow light.

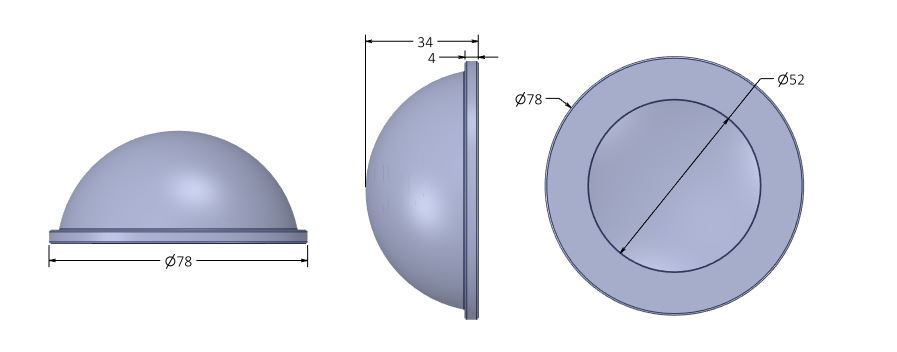

Part # : RX650-018-19
Material High-borosilicate 3.3
Geometry   Ø78 x 34 mm
VLT   91.8%
Operating Temperature       -50°C - + 120 °C
Weight   119g
Beam Angle 120°
Suitable CREE, CITIZE, BRIDGELUE,NICHIA,OSRAM,LG,PHILIPS ,LUMINUS
Application   Miner Lamp, Street Lamp , Flood light , COB Grow lights

3D View

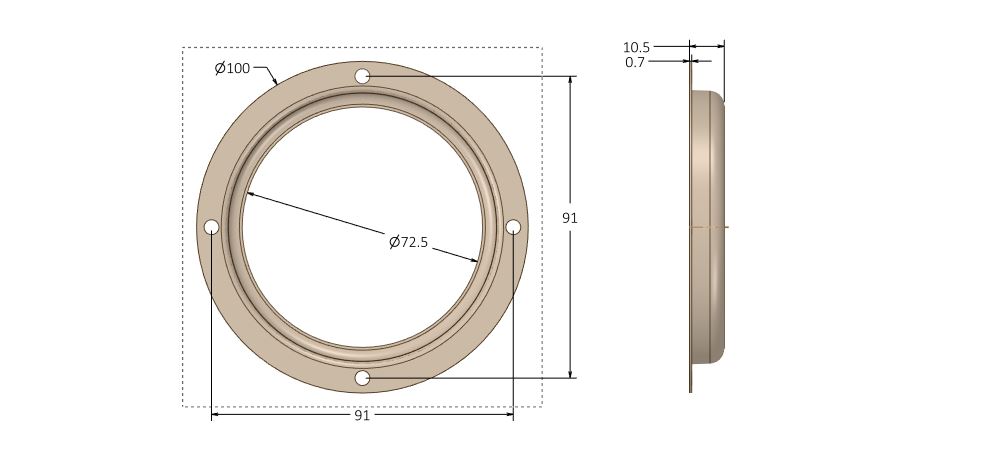

Part # :   RX650-017-19
Material SUS304
Geometry Ø100 x 10.5 mm
Weight   28g
Suitable   Glass Lens  Ø78 x 34 mm RX650-018-19
Application   Miner Lamp, Street Lamp , Flood light , COB Grow lights

3D View

Service
Download Drawing format (such as PDF, CAD)

Thank you for choosing to incorporate the LED lights series, If you need assistance, Renxin Thermal will support you with:

Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock

Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
