RX622-443-19 Extruded Tube Case 150.3 [5.92] x 150.4 [5.92]

Item No.: RX622-443-19
Description
Overview
PN:                                                                                                                                         RX622-443-19
Thermal resistance:                                                                                                                       4.2 - 2.6
Length:                                                                                                                                  300/350/410
Width:                                                                                                                                        150.3 [5.92]
Height:                                                                                                                                     150.4 [5.92]
Purchase Extruded Profile length:                                                                                          1000 (mm)  [39.37 in]
General surface                                                                                           raw degreased aluminium (by the metre raw aluminium)
Weight:                                                                                                                                      3.58  kg/meter
surfaces :                                                                                anodized or  transparent passivated ( UV / Silk screen / Sub-elox powder coating printing)

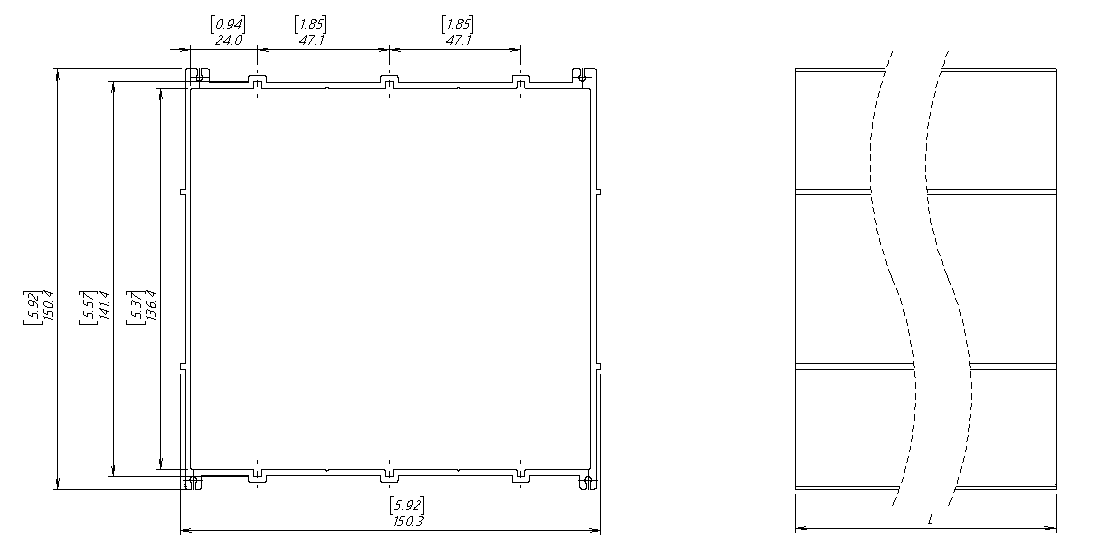

Drawing:

Assemble

Service
Download Drawing format (such as PDF, CAD)


Thank you for choosing to incorporate the extruded tube case for aluminum  series, If you need assistance, Renxin Thermal will support you with:
  • Engineering assistance for product design and manufacturability,
  • Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
  • Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support   : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
