Name: RX580-062-19 Extruded profiles for cooling aggregates 40[1.57] x 40[1.57]
Brand: Renxin Thermal Technologies
SKU: RX580-062-19
Availability: InStock
Rating: 5 (1 reviews)

Item No.: RX580-062-19

Compact design and homogeneous heat dissipation, mounting possible on any side with powerful axial-fan motor, other lengths, special designs and processing according and finish , Fan type and Voltages to customer´s requirements

INQUIRY PDF Format

Description

Features
– Compact design
– homogeneous heat dissipation
– mounting possible on any side
– powerful axial-fan motor
– other lengths, special designs and processing according to customer´s requirements
– other surfaces treatment, fan types and fan voltages on request

Overview
PN   RX580-062-19
Description:     Extruded profiles for cooling aggregates 40[1.57] x 40[1.57]
Materual :    AL6063-T5
Geometry     40 [1.57] x 40 [1.57]
Profiles Area mm²    752.335 mm²
Cut Lenght(mm):     50/75/100/125/150/175
Mounting      FAN 40 X 40
Surfaces :    Anodize or  Degreased
Weight(g) 2.06 kg/meter
Cooling method: Forced convection
Thermal resistance:   RthKf 1.18 - 0.63 [°C/W]
Accessory :       Fan Cover /lock-in retaining spring for transistors

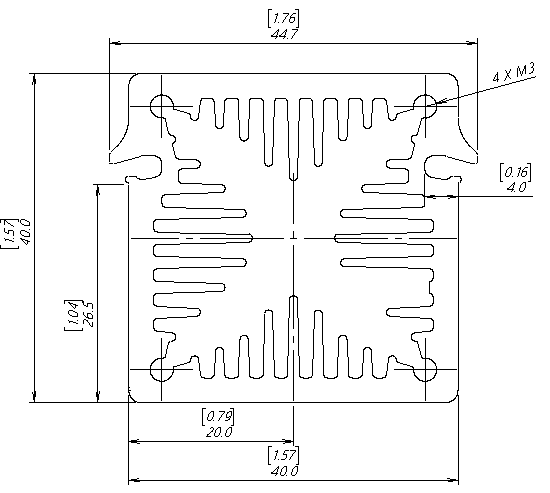

Drawing:

Cut lengths and Drilling, threading and milling on customer request

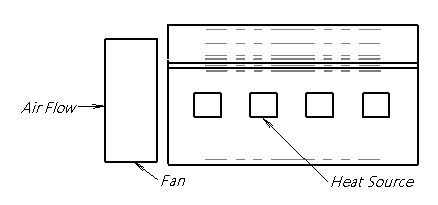

Air flow :

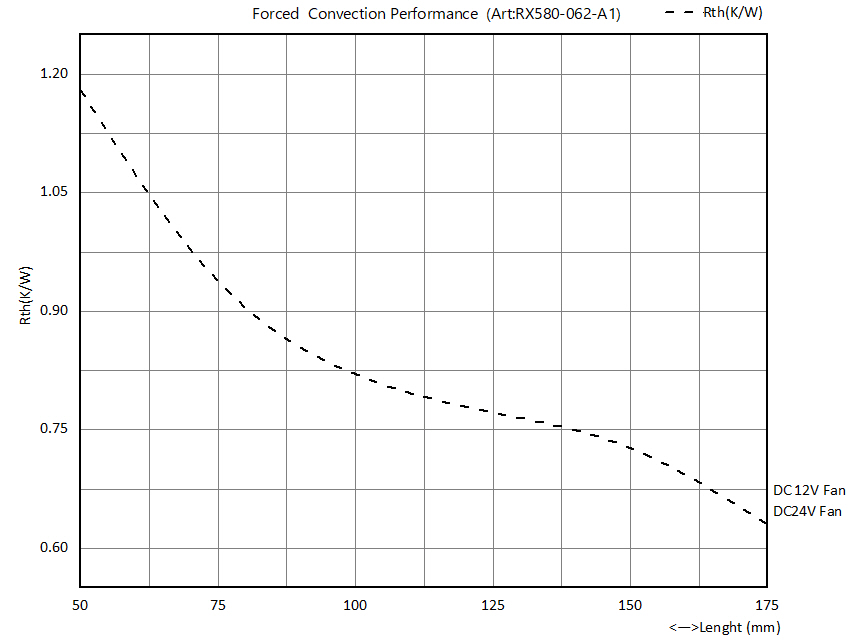

Thermal Preformance
The following thermal resistance parameters are tested in the wind tunnel in the laboratory for reference only. The type of fan is critical in practical application.
In addition, engineers must consider the resistance of the overall product system

Service Download Drawing format (such as PDF, CAD)

Thank you for choosing to incorporate the cooling aggregates series, If you need assistance, Renxin Thermal will support you with:

Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock

Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
