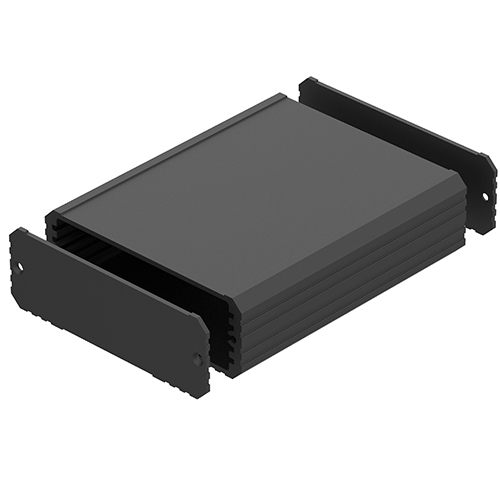

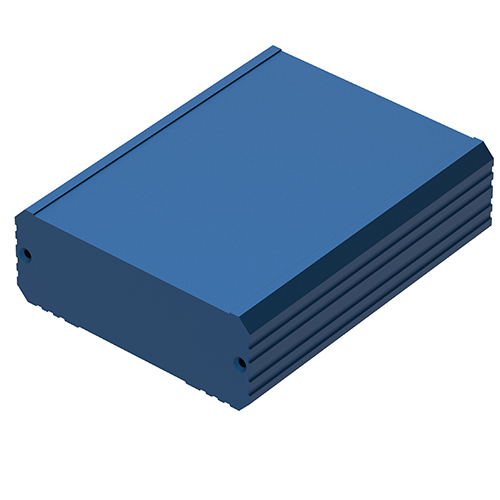

RX622-422-A4 Extruded Tube Case 83.2 [3.28] x 28.4 [1.12]

RX622-422-A4 Extruded Tube Case 83.2 [3.28] x 28.4 [1.12]

Name: RX622-422-A4 Extruded Tube Case 83.2 [3.28] x 28.4 [1.12]
Brand: Renxin Thermal Solutions
SKU: RX622-422-A4
Availability: InStock
Rating: 5 (1 reviews)

Item No.: RX622-422-A4

INQUIRY PDF Format

Description Drawing Other variants

Overview
PN:    RX622-442-19
Thermal resistance:     8.0 - 4.9
Length: 　 100/120/150/180/200
Width:    83.2 [3.28]
Height:    28.4 [1.12]
Purchase Extruded Profile length: 1000 (mm) [39.37 in]
General surface   raw degreased aluminium (by the metre raw aluminium)
Weight:    1.28 kg/meter
surfaces :   anodized or transparent passivated ( UV / Silk screen / Sub-elox powder coating printing)

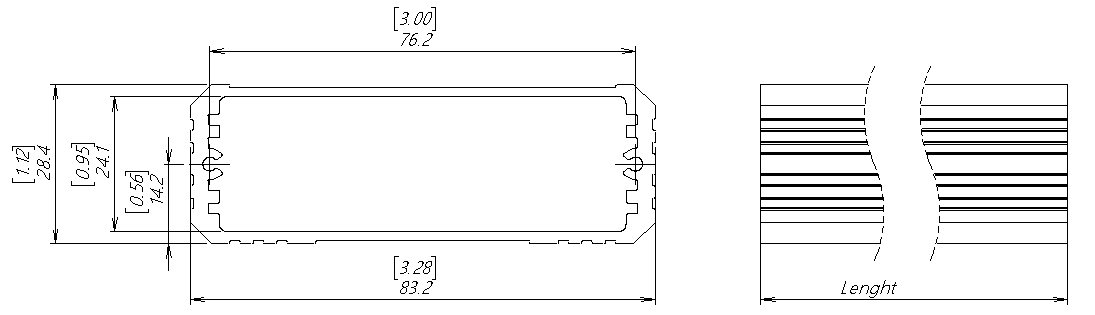

Drawing:

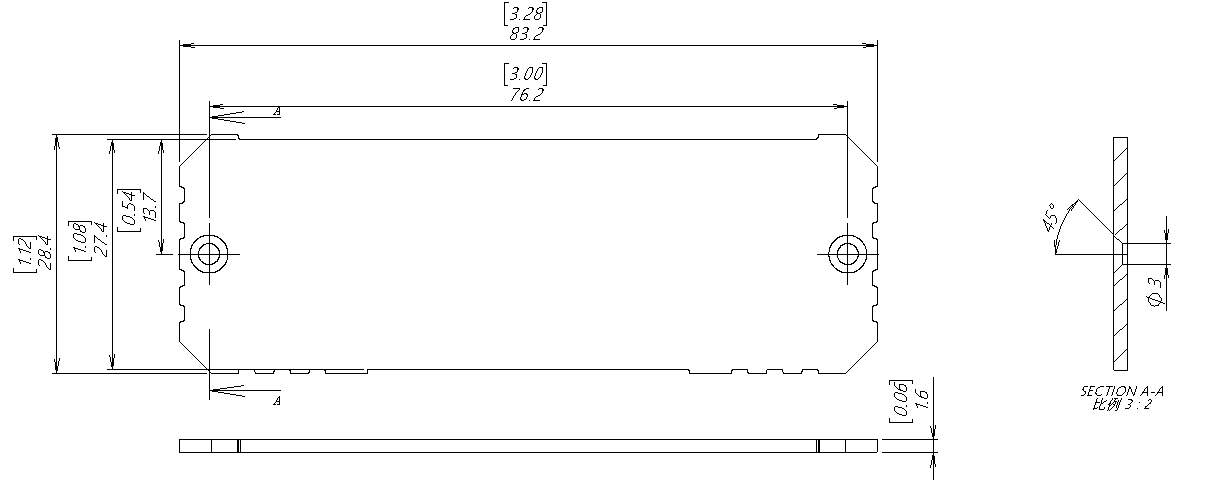

Assessories (back x 2)

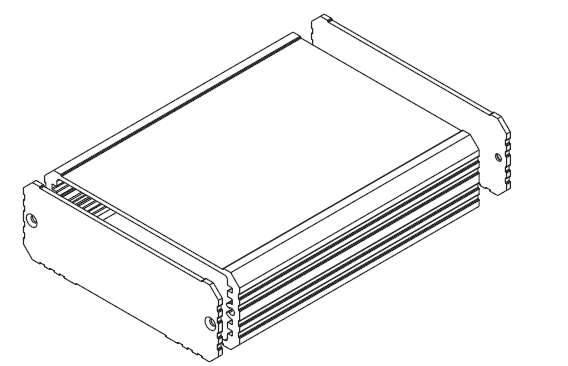

Assemble

Service
Download Drawing format (such as PDF, CAD)

Thank you for choosing to incorporate the extruded tube case for aluminum series, If you need assistance, Renxin Thermal will support you with:

Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock

Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com

Art: RX622-423-A4
Surface: Customised or Anodize
Width: 83.2  (mm)
Height:   28.4  (mm)
thickness :1.6 (mm)
Weight:   9.67g

RX622-422-A4 Extruded Tube Case 83.2 [3.28] x 28.4 [1.12]
