Overview PN RX602-008-19
Description: Pin Heatsink for Forging 50[1.97] x 50[1.97]
Materual : AL1050(99.5%)
Width: 50[1.97] x 50[1.97]
Height : 41.5 [1.63]
Base thickness 3.5 [0.14]
Fin Area mm² 35,879.4 mm²
Surfaces : Anodize or Degreased
Weight(g) 84.33gDrawing: Thermal resistance
Ambient temperature in 35°C
Disspated Power 15 W

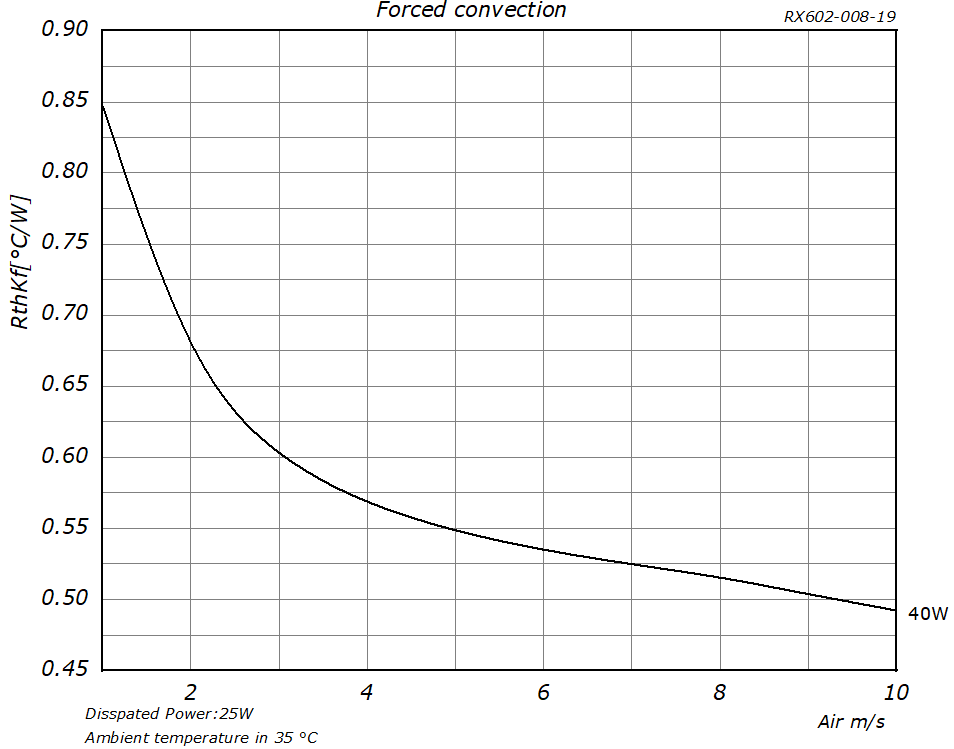

RthK[°C/W] natural convection 3.63 (°C/W) Forced convection
Ambient temperature 35°C
Disspated Power 40 W Service Download Drawing format (such as PDF, CAD) Thank you for choosing to incorporate the forging pin heatsink series, If you need assistance, Renxin Thermal will support you with:
Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support :info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
