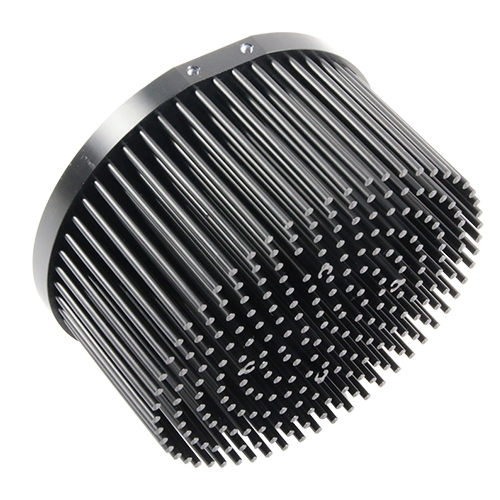

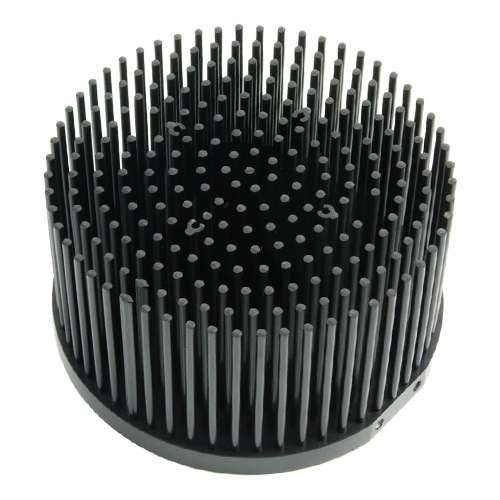

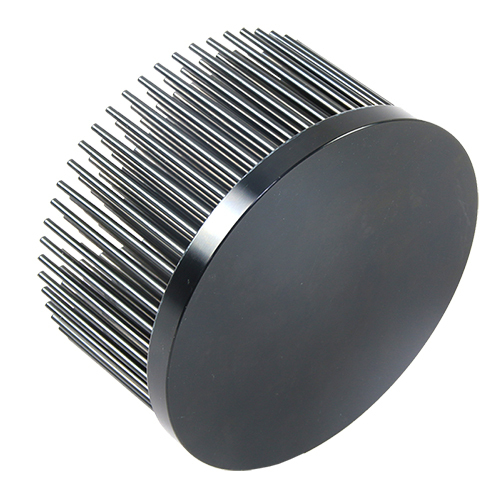

RX612-133-A4 Forging Heatsink for COB grow lights 133[5.24]x70[2.755] 75 Watts
RX612-133-A4 Forging Heatsink for COB grow lights 133[5.24]x70[2.755] 75 Watts RX612-133-A4 Forging Heatsink for COB grow lights 133[5.24]x70[2.755] 75 Watts RX612-133-A4 Forging Heatsink for COB grow lights 133[5.24]x70[2.755] 75 Watts

RX612-133-A4 Forging Heatsink for COB grow lights 133[5.24]x70[2.755] 75 Watts

Item No.: Art:RX612-133-A4
arrangement and number of pins for optimum air flow and suitable for forced and free convection,  constant heat dissipation in the base and the pins in the direction of heat flow
INQUIRY PDF Format
Description
– Circular arrangement and number of pins for optimum air flow
– Suitable for forced and free convection
– Excellent thermal conductivity by the alloy material (Al1070 /Al97% ,5; 220 W/mK) and homogeneous arrangement of materials
– Constant heat dissipation in the base and the pins in the direction of heat flow
– Low weight achieved by optimised geometry
– Components fastened using screw, adhesive foil or clamps
– Customer-specific modifications and special designs
– Other pin-lengths and surfaces on request
– Surface: A1-natural  A4 : Black Aondize

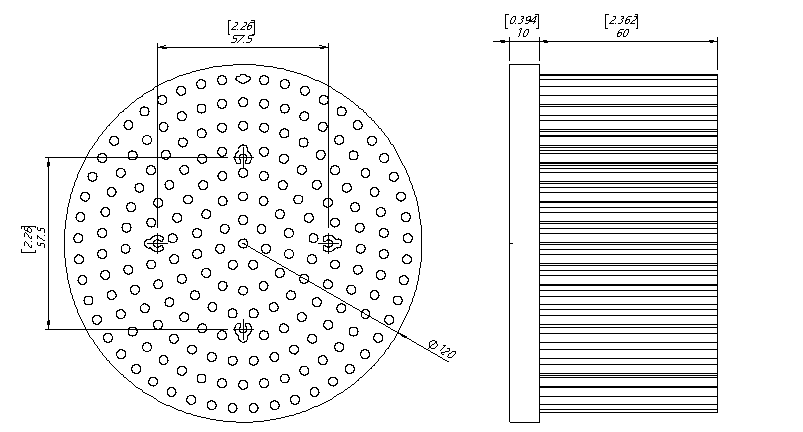

Drawing


Product Parameter
PN                                           RX612-133-A4
Thermal resistance:               0.68 K/W
Material  :                               AL1050(AL99.5%)
Surface  :                                A4: black Anodize  ( Color available)
Pin Height:                             70  mm  (  Pin Height :30- 80mm  available)
Base Diameter:                      Ø133 mm
Bae thickness:                       10mm
Pin Diameter                          Ø3.0mm
Pin Count:                              253 Pieces
Weight:                                  684 g

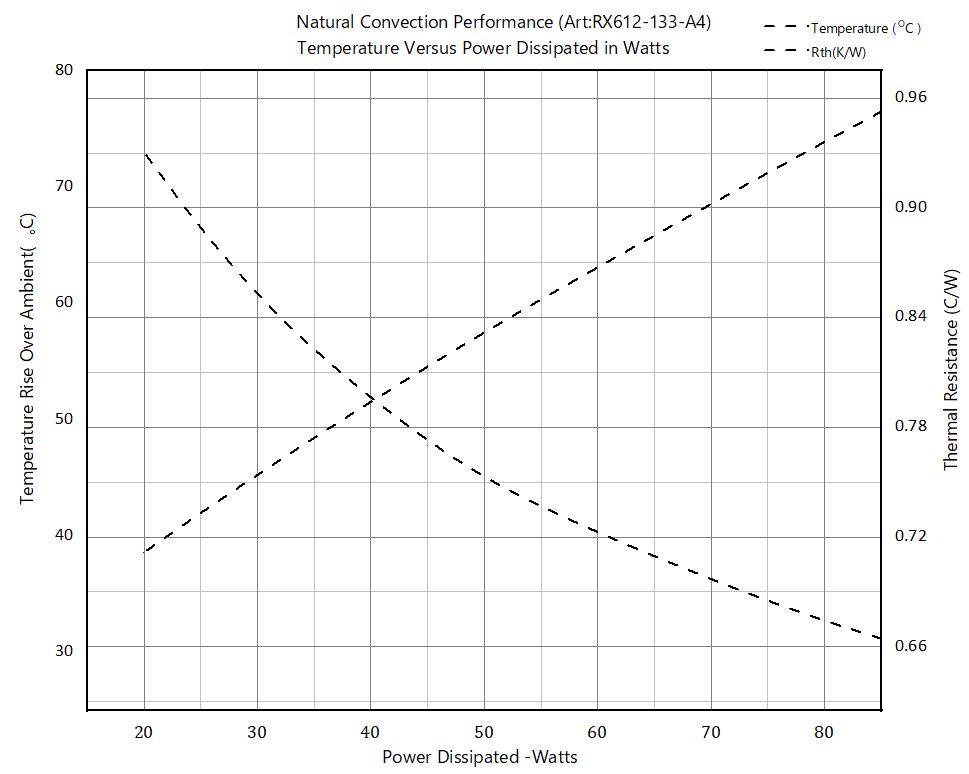

Thermal Preformance
Service

Thank you for choosing to incorporate the Foring Pin Fin Heatsink series, If you need assistance, Renxin Thermal will support you with:
  • Engineering assistance for product design and manufacturability,
  • Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
  • Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support   : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
