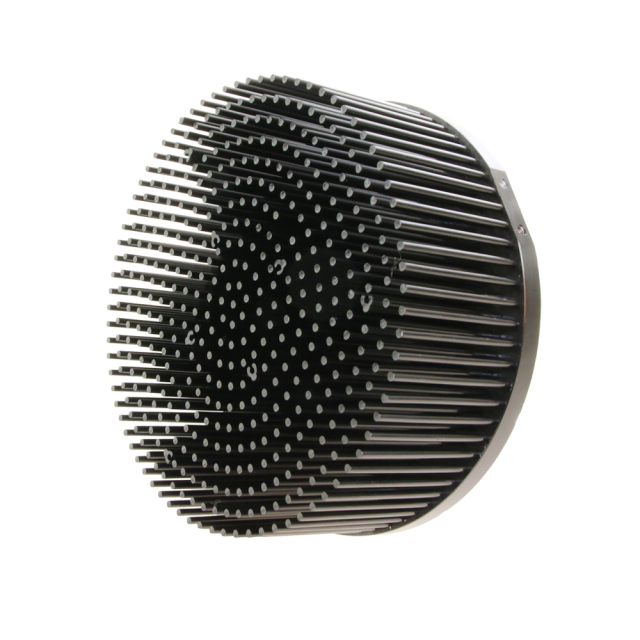

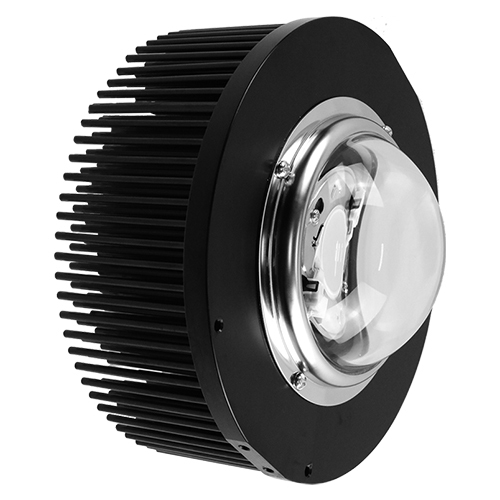

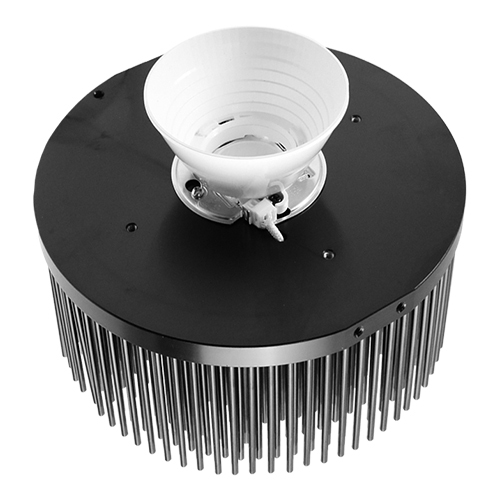

RX612-180-A4 Forging Heatsink for COB grow lights 180[7.09]x70[2.755]120 Watts
RX612-180-A4 Forging Heatsink for COB grow lights 180[7.09]x70[2.755]120 Watts RX612-180-A4 Forging Heatsink for COB grow lights 180[7.09]x70[2.755]120 Watts RX612-180-A4 Forging Heatsink for COB grow lights 180[7.09]x70[2.755]120 Watts

RX612-180-A4 Forging Heatsink for COB grow lights 180[7.09]x70[2.755]120 Watts

Item No.: Art:RX612-180-A4
The Pin heatsink series of LED lighting modules is engineered to allow lighting designers and luminaire manufacturers to quickly incorporate Cree CXB3590 , Luminus CXM-22 Citizen CLU-048 , Bridgelux Vero 29 into their lighting designs.
INQUIRY PDF Format
Description
– Circular arrangement and number of pins for optimum air flow
– Suitable for forced and free convection
– Excellent thermal conductivity by the alloy material AL1050 (99.5%) ; 226 W/mK and homogeneous arrangement
– Constant heat dissipation in the base and the pins in the direction of heat flow
– Low weight achieved by optimised geometry
– Components fastened using screw, adhesive foil or clamps
– Customer-specific modifications and special designs
– other pin-lengths and surfaces on request
– Surface: A4:  Black Aondize  (Color available)

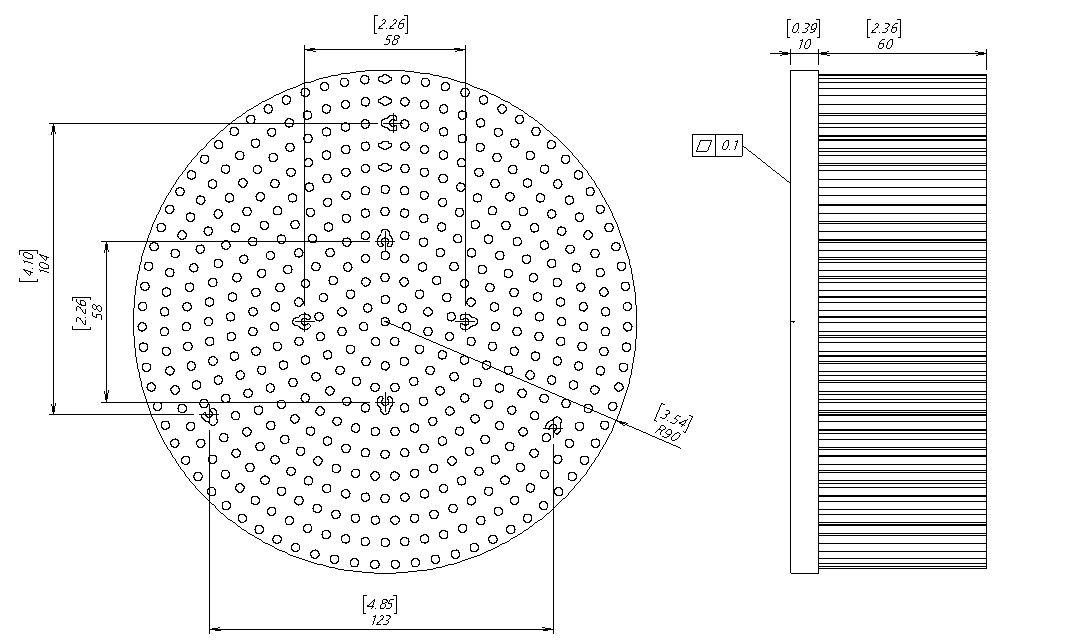

Drawing
Product Parameter
PN                                                RX612-180-A4
Thermal resistance:                        0.49 K/W
Material  :                                     AL1050(99.5%)
Surface  :                                      A4: Black Anodize ((Color Available)
Total Height:                                  70[2.76]
Pin Height:                                     60[2.36]
Base Diameter:                              Ø180[6.42]
Base  Thickness:                             10[0.39]
Pin Diameter                                  Ø3.0mm
Pin Count:                                     441 Pieces
Weight:                                        1.251 Kg

Notes:  Pre (CXB3590/Bridgelux Vero 29 COB/) Drilling, threading and milling on customer request

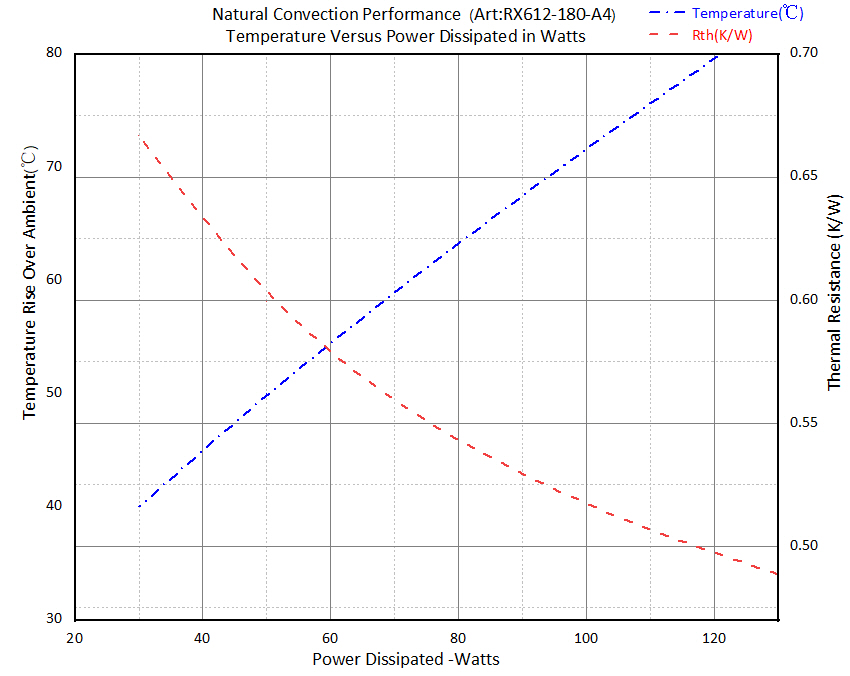

Thermal Preformance

Technical information

Service
Thank you for choosing to incorporate the Foring Pin Fin Heatsink series, If you need assistance, Renxin Thermal will support you with:
  • Engineering assistance for product design and manufacturability,
  • Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
  • Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support   : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
