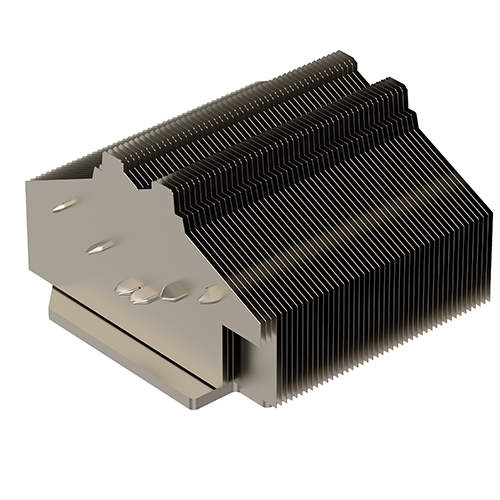

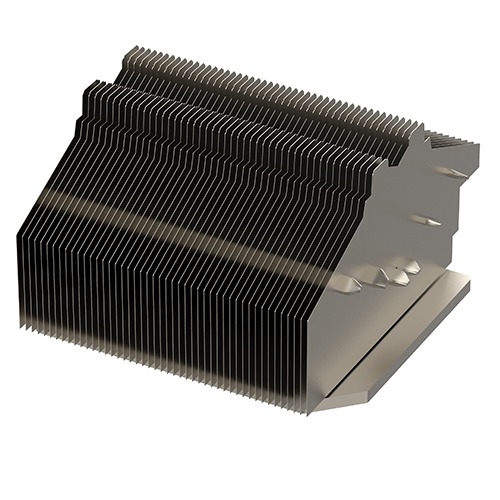

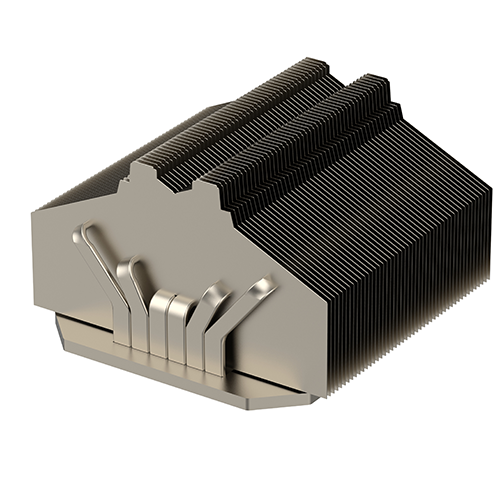

Name: RX614-005-19 6 Heat pipe for 200W cooling system
Brand: Renxin Thermal Solutions
SKU: RX614-005-19
Availability: InStock
Rating: 5 (1 reviews)

Item No.: RX614-005-19

INQUIRY PDF Format

Description

Overview
PN    RX614-005-19
Description:     6 x Ф6.0 Heat pipe for cooling system 200W
Materual :    Heat pipe copper T2/ Fin ：Aluminum 1050 /Base Copper
Width:    168.5[6.63]
Height : 94.7 [3.73]
Cooling : Natural
Fin Area mm²   10,066.5 cm²
Heat pipe Ф6.0 x 6 pieces
Surfaces :    Tin
Qmax(W)   186 ~ 200 W
Starting temperature    28 C°
Rth[K/W]   0.041 K/W
Operating Temperatures    [-25ºC~125ºC]

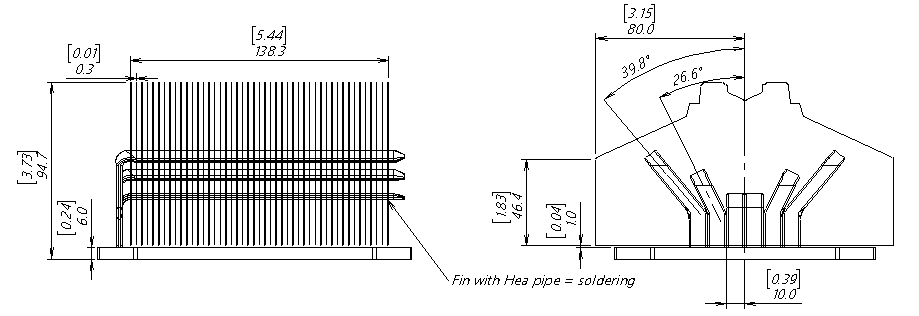

Drawing:

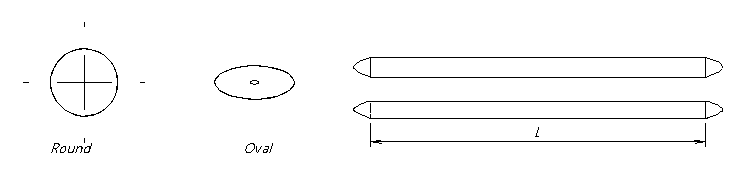

The diameter of the heat pipe and its performance after flattening：
The fluid flow in the heat pipe will be affected when it is flattened，The Qmax heat transfer performance of the heat pipe will change.
following parameters pass the test experiment and are recommended for reference in the design

Thermal Parameters of heat pipe diameter and thickness
Flattening thickness	Ф3mm	Ф4mm	Ф5mm	Ф6mm	Ф8mm
2.0mm	9	16	20	26	31
2.5mm	13	17	31	45	62
3.0mm	14	17	40	55	70
Round	14	17	43	57	78

Gravity Vector and thermal preformance :
The diameter of heat pipe, sources power and installation position of heat source have significant influence on the performance of heat pipe,

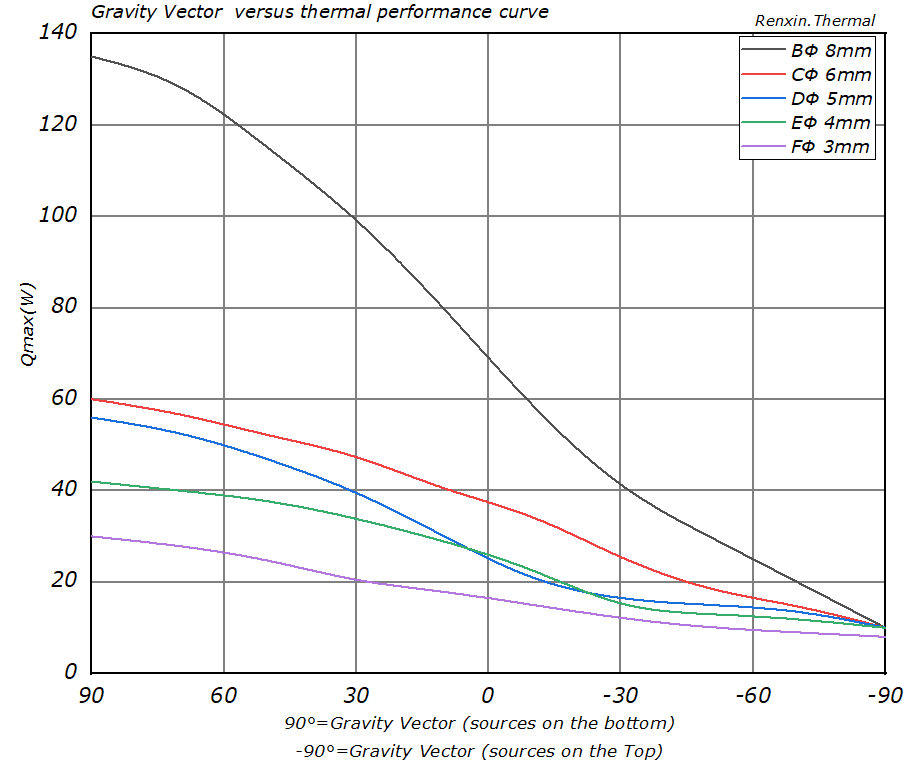

The following curve shows the variation of heat pipe heat dissipation performance in gravity vector

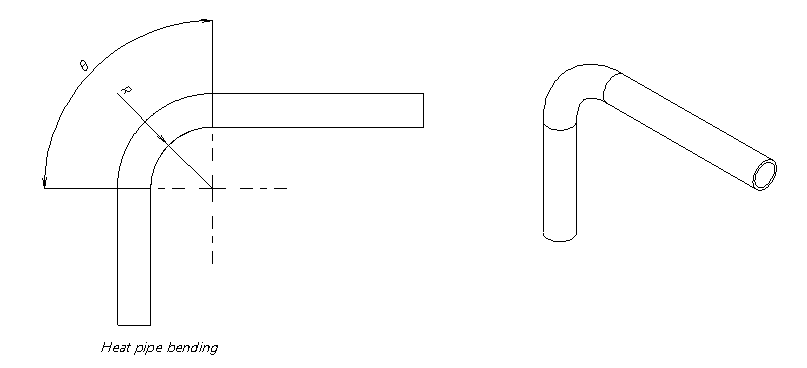

Thermal Performance of bending of heat pipes:
Bending changes the path inside the heat pipe, and at the bending position, the flow of steam and fluid is blocked. The bending radius has great influence on the thermal performance of heat pipe.
The following is the recommended bending radius for different bending angles when designing.

Dia(mm)	Bending θ=45 °	Bending θ=90 °	Bending θ=135 °
Ф4	R = 8mm	R = 8mm	R = 10mm
Ф5	R = 8mm	R = 10mm	R = 12mm
Ф6	R = 10mm	R = 12mm	R = 14mm
Ф8	R = 16mm	R = 16mm	R = 18mm
