Overview
PN: RX615-021-19

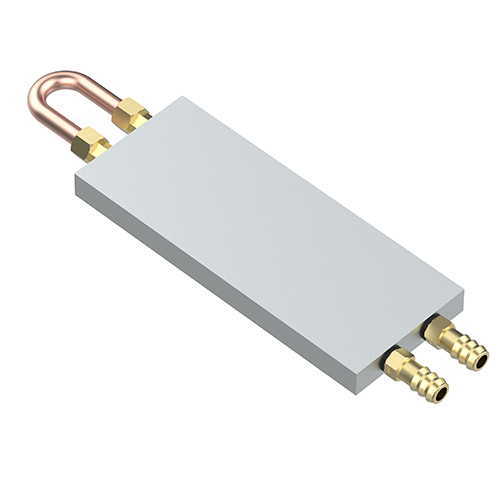

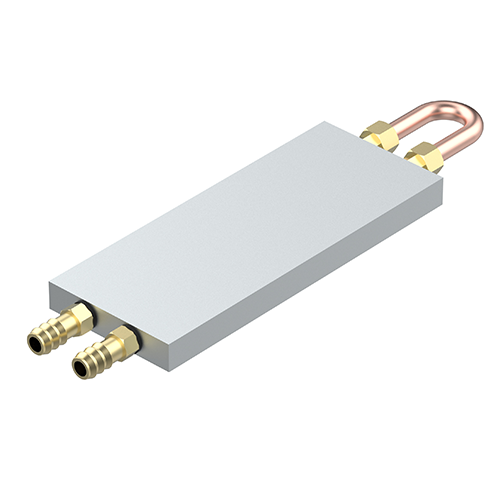

Description: Cold plate extruded double cooling channel Ф10.5[0.47] x 80[3.15] x 16[0.63] for diode module

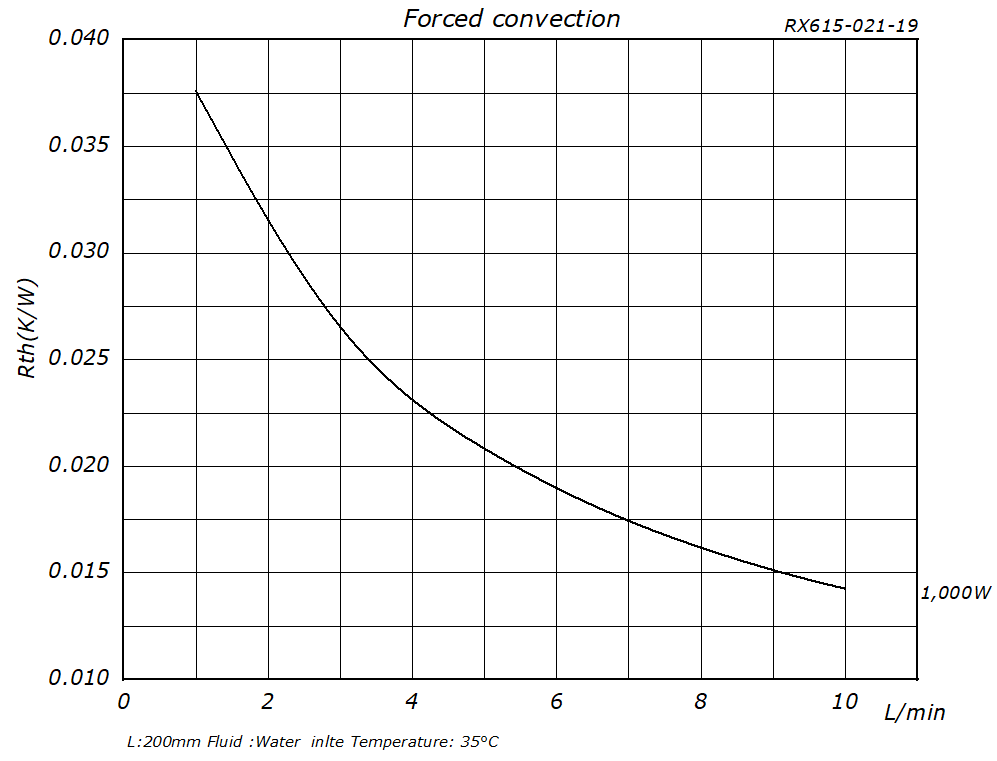

Thermal resistance: 0.037 - 0.014 K/W
Length: cut to customer requirements
Width: 80 [3.15]
Thickness: 16 [0.63]
liquid channel Area mm²： 86.59 mm²
liquid channel : The aluminium cooling channels are formed directly by the extrusion process
Extruded Profile Area mm²: 1106.82 mm²
General surface raw degreased aluminium (by the metre raw aluminium)
Weight: 3.01 kg/meter
surfaces : anodized or transparent passivated / Degreased
Manufacturer : Renxin.Thermal

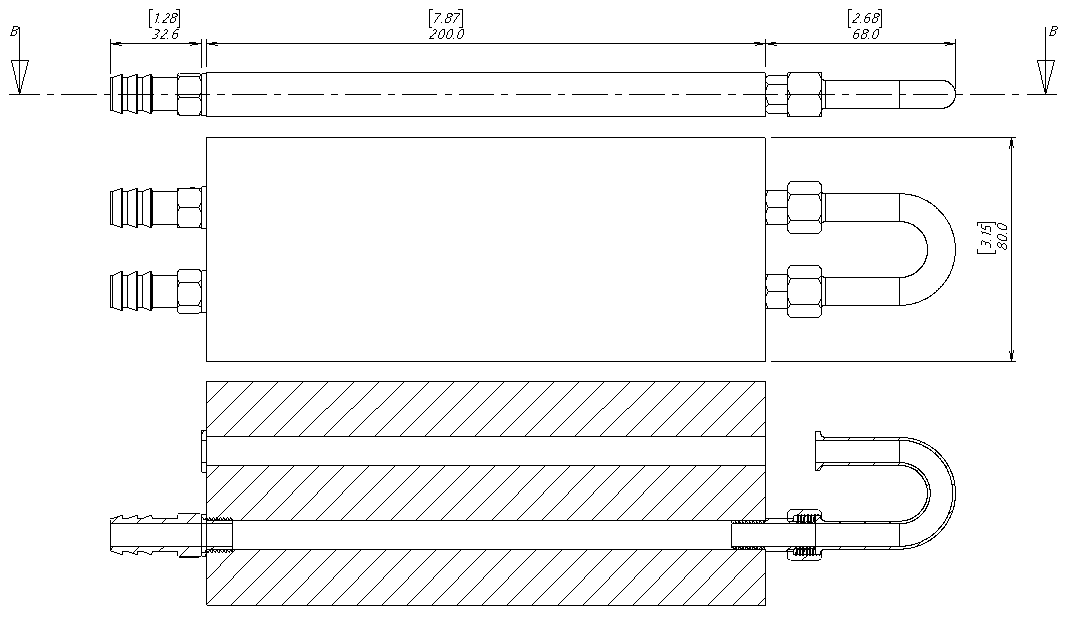

Drawing:
Length: cut to customer requirements

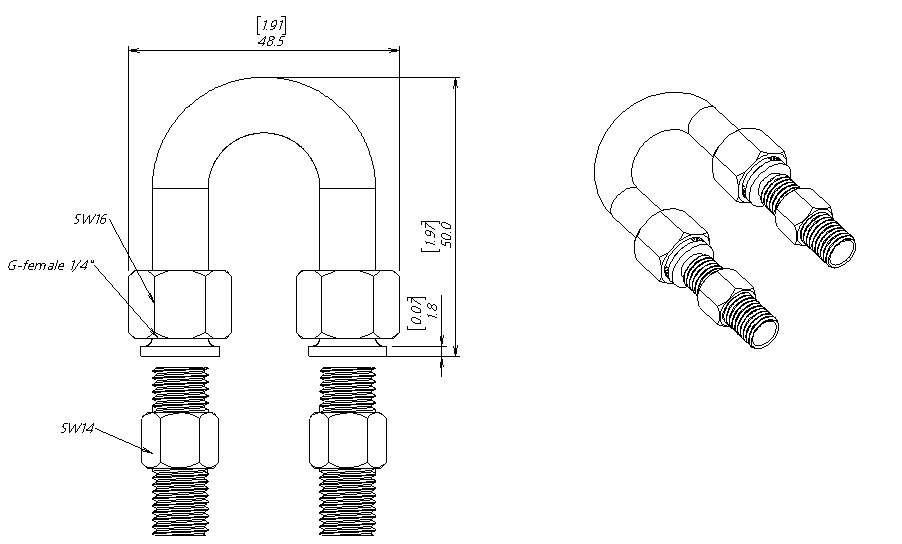

Liquid cooler - Accessories: Standard Connecting fittings

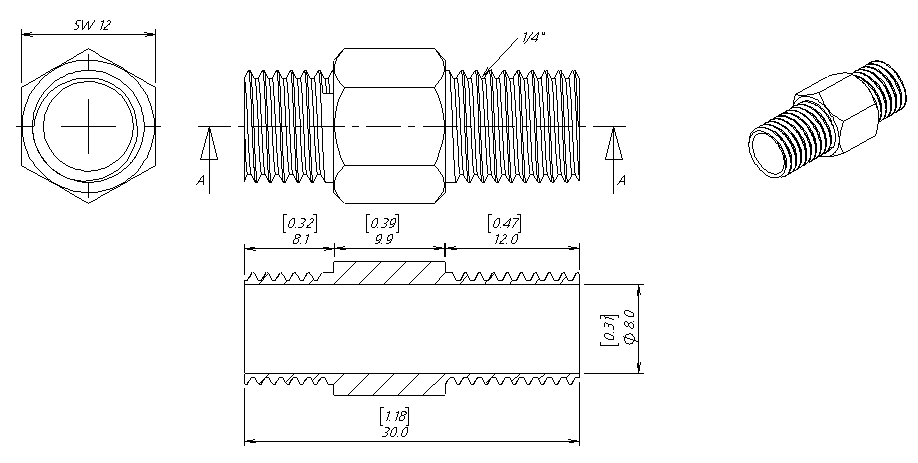

Screw-in joint, Whitworth thread G 1/4“ and R 1/4“
Screw-in joint, Whitworth thread G 1/4“ and R 1/4“
Assemble：
Rth(K/W)
The following is the fluid characteristics table for the designer's reference
| Fluid |
Freezing g point (°C) |
Fire Point(°C) |
Viscosity (kg/m.s) |
Thermal conductivity(w/m.k) |
specific heat(J/kg.k) |
Density（kg/m³) |
| Ethylene glycol/ Water (50:50) |
-37.8 |
_ |
0.0038 |
0.37 |
3285 |
1087 |
| Tri- ethylene glycol/Water (50:50) |
-35 |
_ |
0.0064 |
0.36 |
3400 |
1062 |
| CH3OH/Water (40:60) |
-40 |
29 |
0.002 |
0.4 |
3560 |
935 |
| Ethanol/Water (44:56) |
-35 |
27 |
0.003 |
0.38 |
3500 |
927 |
| CaFo/Water (40:60) |
-35 |
_ |
0.0022 |
0.53 |
3200 |
1250 |
| liquid metal(Ga-ln-Sn) |
~-10 |
_ |
~0.0022 |
~39 |
~366 |
5000~7000 |
| Pure Water |
0 |
_ |
0.00086 |
0.614 |
4179 |
955.8 |
| Air ( < 30°C) |
0 |
|
0.0000186 |
0.027 |
1005 |
1.165 |

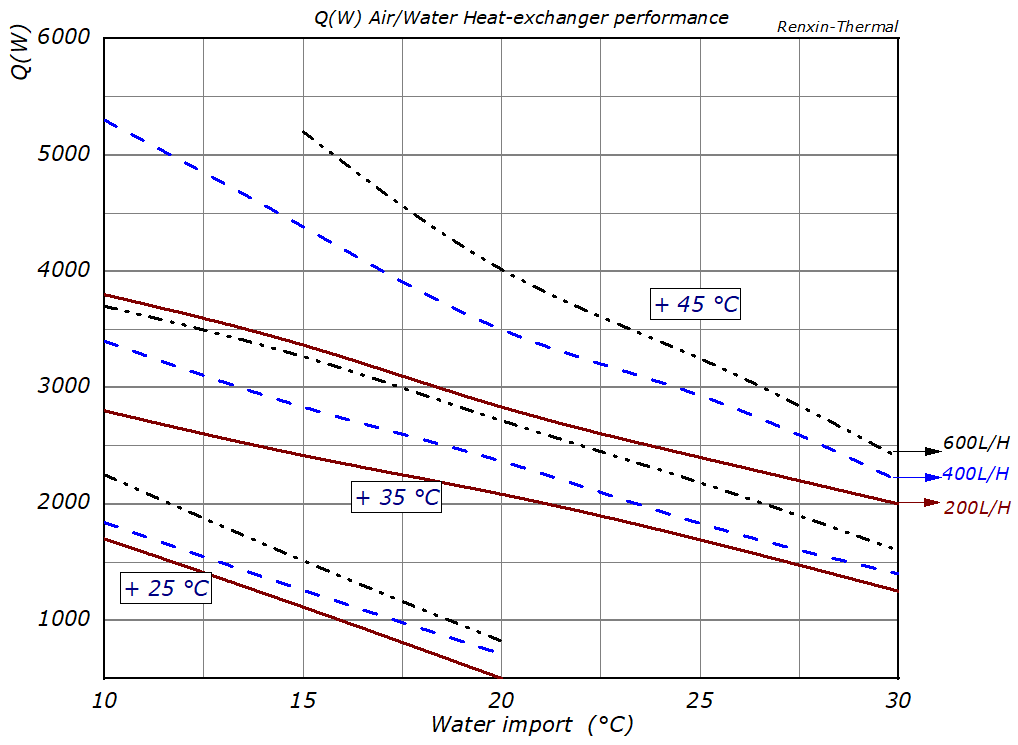

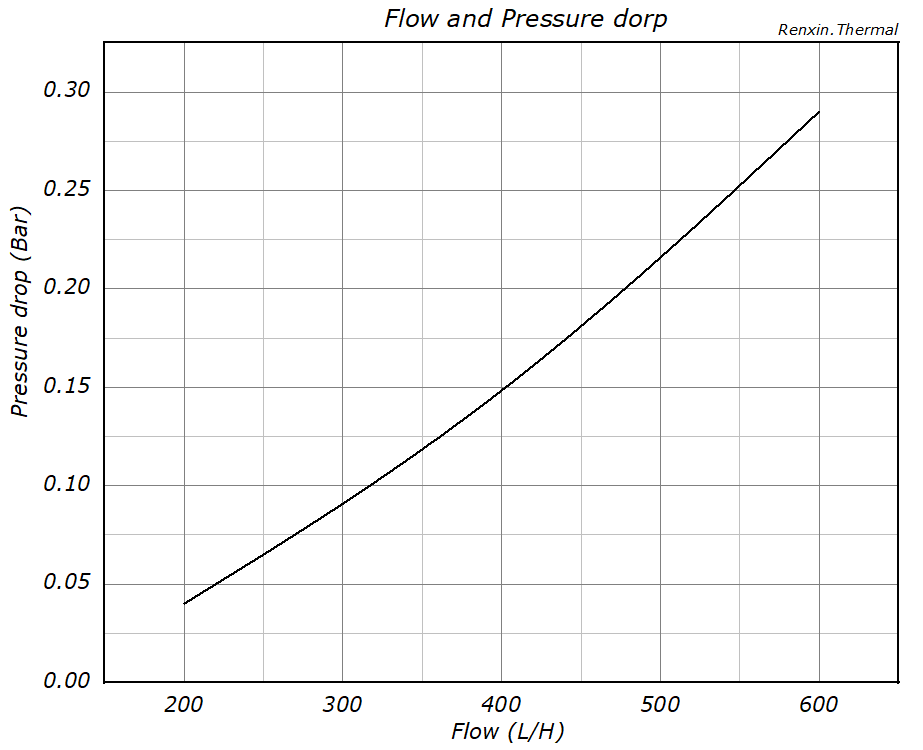

The following is the heat exchanger parameters for the designer's reference
Service
Download Drawing format (such as PDF, CAD)
Thank you for choosing to incorporate the Liquid cooler for diode PACKTM/SKiPPTM/, If you need assistance, Renxin Thermal will support you with:
- Engineering assistance for product design and manufacturability,
- Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
- Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
Extruded Double Cooling Channels for Optimal Heat Dissipation
This cold plate is engineered with extruded double cooling channels, designed to enhance the efficiency of heat transfer, ensuring that diode modules operate at optimal temperatures. The advanced cooling design is perfect for high-power applications where heat management is crucial.
Superior CNC Machining for Precision
Manufactured with custom CNC machining, this cold plate guarantees precise dimensions and custom fit. As one of the leading CNC machining manufacturers, we ensure high-quality products with tolerances that meet your specific requirements, ensuring reliability and performance.
Corrosion-Resistant and Durable Materials
The cold plate is made from aluminum, a material known for its excellent thermal conductivity and corrosion resistance. This makes it suitable for long-term use in various industrial environments, ensuring longevity and continued performance.
Versatile Thermal Management Solution
This cold plate is compatible with a wide range of diode modules and other power electronics. Whether used in power supplies, inverters, or industrial machines, it effectively manages heat to ensure the safe and efficient operation of your devices.
Product Advantages
-
Enhanced Cooling Efficiency:The double cooling channel design maximizes thermal dissipation, which is critical for diode modules and other high-power components. This results in higher efficiency and better performance of your electronic devices.
-
Custom CNC Machining for Precision Fit:As a professional CNC machining manufacturer, we offer precision-engineered solutions that meet your exact specifications, providing a perfect fit for your application.
-
Durable and Corrosion-Resistant:Made from aluminum, this cold plate offers superior durability and resistance to wear and tear, ensuring that your thermal solution lasts longer and operates reliably in harsh conditions.
-
Cost-Effective Solution:With high-quality materials and CNC machining precision, this cold plate provides an effective thermal solution at a competitive price, offering excellent value for power electronics manufacturers.
