Product Details
The coolers of the latest generation achieve a high flow rate with very low values of
power consumption. As a result of the computer-supported development of the wing
geometry, even the noise development has been optimised, and thus, the noise generated
by a typical rotor speed of 11,000 rpm-1 is very quiet with a sound level of 21
dB(A),Another plus point is the long service life of 70,000 / 350,000 hours (L10 / MTBF at
40°C). Moreover, the chip coolers have an electronically commuted motor whose motor
winding is switched by a special IC.
By a selection of suitable electronic components and high-quality ball bearings, the
reliability of the fans is achieved at operating temperatures between -10 and +80 °C.
Overview
Art: RX602-025-19
Rth: 1.3 ~ 1.05 K/W
Fan Size: 40x40x10mm or 40x40x15mm
Noise : 15 ~ 30 dB (A)
VDC : 6 ~ 12
Current: 35 ~ 80 mA
RPM: 3600 ~ 11000
Operating Temperature : - 20 ~ +80 ℃
Bearing Fan : 2 Ball bearing
Life Expectancy : > 350,000 H

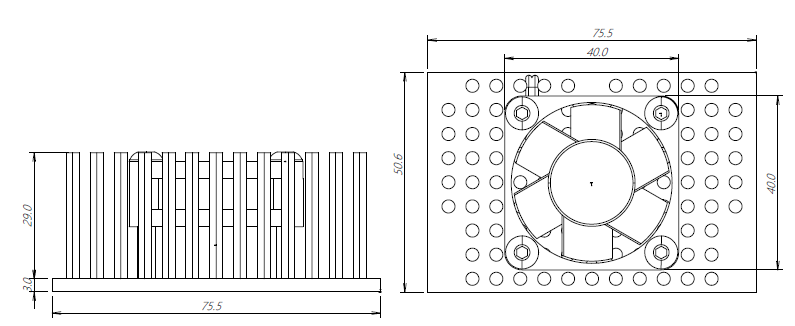

Heatsink size: 75 x 50 x 32 mm
Heatsink Material : AL1050 (99.5%) ROHS
