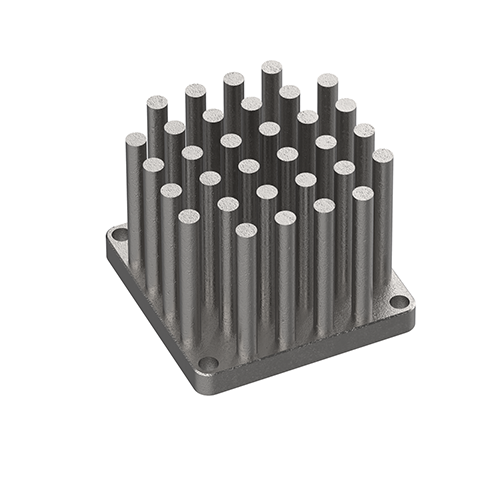

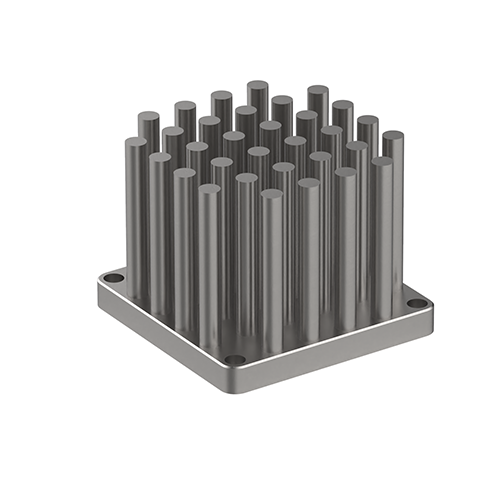

RX620-030-19 Pin Heatsink for Forging 30[1.18] x 30[1.18]

RX620-030-19 Pin Heatsink for Forging 30[1.18] x 30[1.18]

Name: RX620-030-19 Pin Heatsink for Forging 30[1.18] x 30[1.18]
Brand: Renxin Thermal Solutions
SKU: RX620-030-19
Availability: InStock
Rating: 5 (1 reviews)

Item No.: RX620-030-19

INQUIRY PDF Format

Description

Overview
PN    RX620-030-19
Description:     Pin Heatsink for Forging 30[1.18] x 30[1.18]
Materual :    AL1050(99.5%)
Width:    30[1.18] x 30[1.18]
Height : 23.5[0.93]
Base thickness 3.5[0.14]
Fin Area mm² 7,839.21mm²
Surfaces :    Anodize or  Degreased
Weight(g) 17.46 g

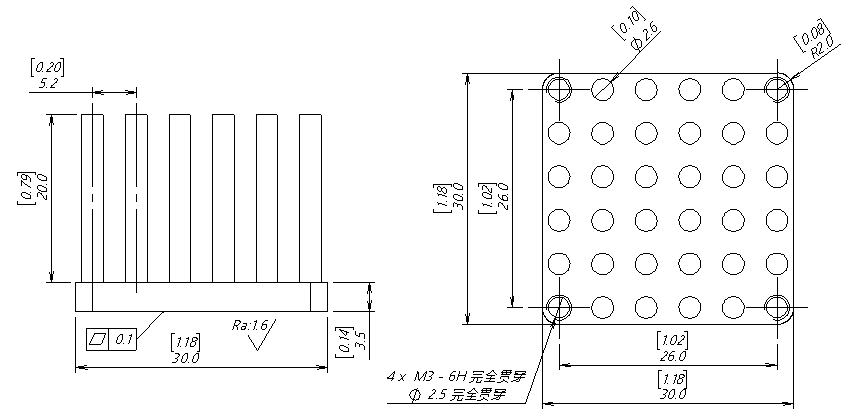

Drawing:

Thermal resistance
Natural convection

Ambient temperature in 35°C
Disspated Power 4.5 W
RthK[°C/W] natural convection 11.09 (°C/W)

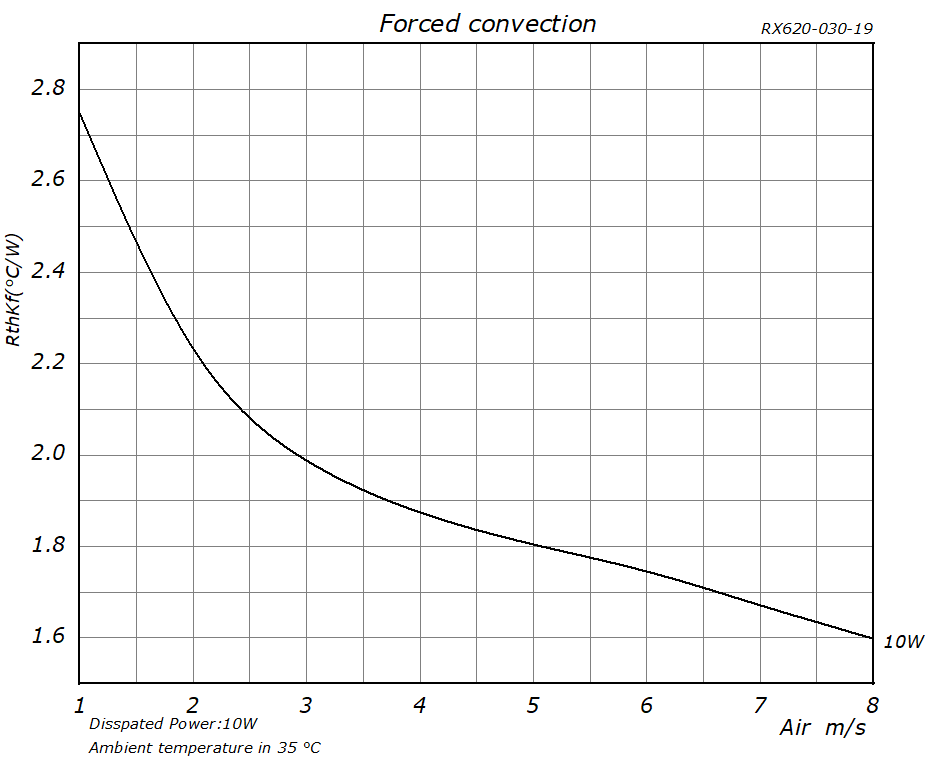

Forced convection
Ambient temperature 35°C
Disspated Power 10 W

Service
Download Drawing format (such as PDF, CAD)

Thank you for choosing to incorporate the forging pin heatsink series, If you need assistance, Renxin Thermal will support you with:

Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock

Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
