RX620-040-19 Pin Heatsink for Forging 40[1.57] x 40[1.57]

Item No.: RX620-040-19
Description
Overview
PN                                                                                                                                                              RX620-040-19
Description:                                                                                                                         Pin Heatsink for Forging 40[1.57] x 40[1.57]
Materual :                                                                                                                                                      AL1050(99.5%)
Width:                                                                                                                                                         40 [1.57] x 40 [1.57]
Height  :                                                                                                                                                           33.5[1.32]
Base thickness                                                                                                                                                    3.5[0.14]
Fin Area mm²                                                                                                                                                 17,948.97 mm²
Surfaces :                                                                                                                                                Anodize or  Degreased
Weight(g)                                                                                                                                                              38.76g

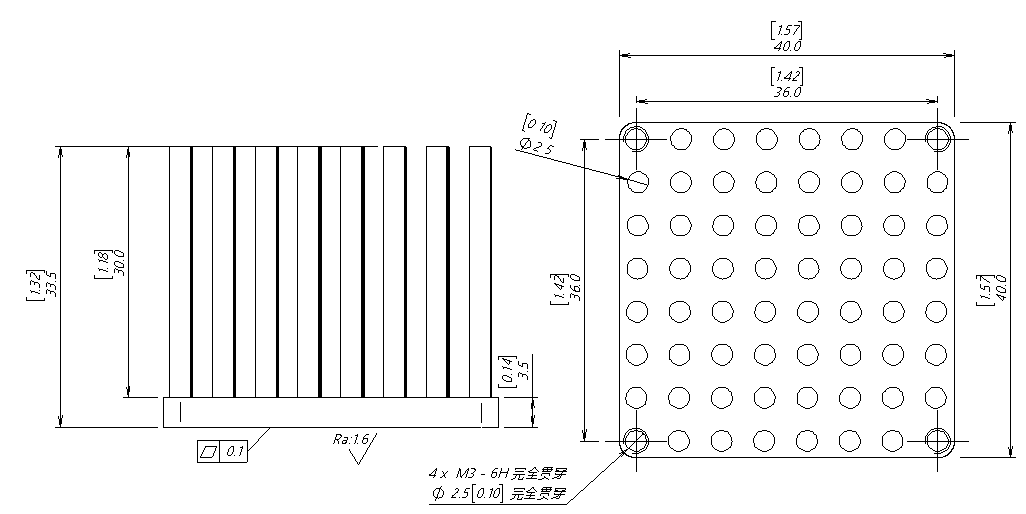

Drawing:

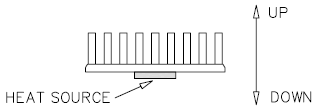

Thermal resistance

Ambient temperature in 35°C
Disspated Power                                                                                                                                                   8.5 W
RthK[°C/W] natural convection                                                                                                                           5.83 (°C/W)

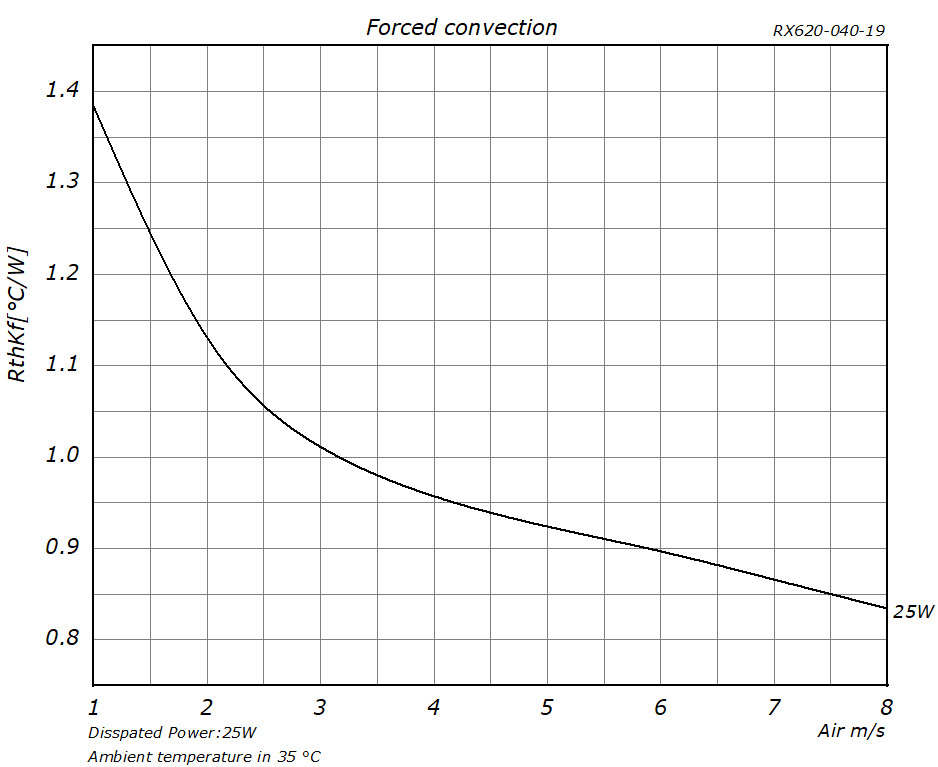

Forced convection
Ambient temperature                                                                                                                                              35°C
Disspated Power                                                                                                                                                    25 W


Service
Download Drawing format (such as PDF, CAD)




Thank you for choosing to incorporate the forging pin heatsink  series, If you need assistance, Renxin Thermal will support you with:
  • Engineering assistance for product design and manufacturability,
  • Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
  • Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support   : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
