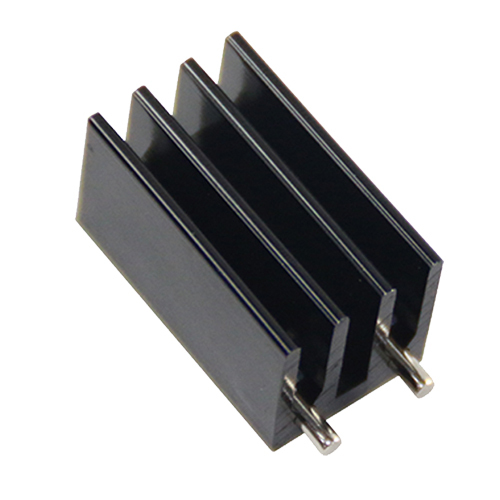

Overview PN: RX580-012-A4
Thermal resistance: 24- 6.1
Length: 30/35/40/50
Surface: Black Anodize
Width: 16 [0.64]
Height: 17 [0.65]
semiconductor mounting: TO 220
Purchase Extruded Profile length: 1000 (mm) [39.37 in]
General surface raw degreased aluminium (by the metre raw aluminium)

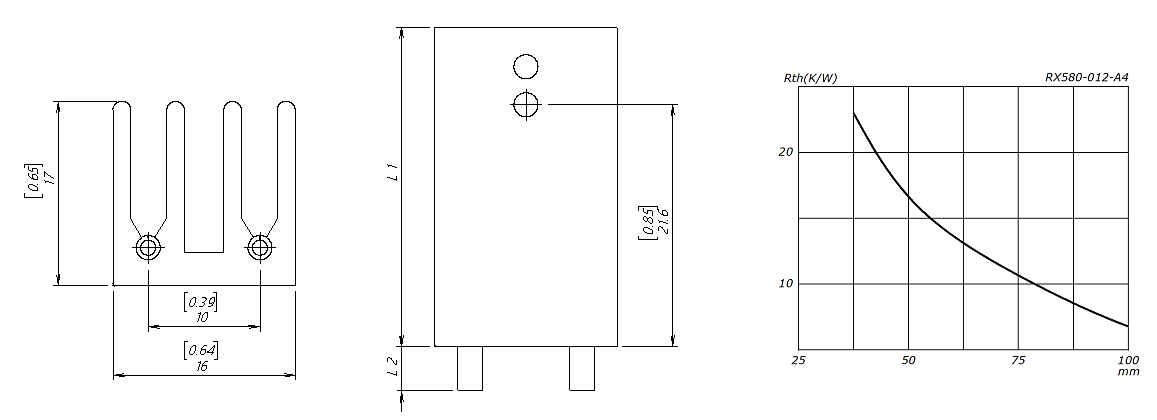

Weight: 0.38 kg/meterDrawing:
special lengths and drillings on requestService (Download Drawing format (such as PDF, CAD) Thank you for choosing to incorporate the PCB barod level Heatsink series, If you need assistance, Renxin Thermal will support you with:
Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support :info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
