RX580-003-A4 Width: 25 [0.98] x Height: 14[0.55]

Name: RX580-003-A4 Width: 25 [0.98] x Height: 14[0.55]
Brand: Renxin Thermal Solutions
SKU: RX580-003-A1
Availability: InStock
Rating: 5 (1 reviews)

Item No.: RX580-003-A1

INQUIRY PDF Format

Description

Overview
PN:    RX580-003-A4
Thermal resistance:     13.2- 8.8
Length: 25/37/50/75 (special lengths and drillings on request)
Surface: Black Anodize
Width:    25 [0.98]
Height: 14 [0.55]
semiconductor mounting:    TO-220
Purchase Extruded Profile length: 1000 (mm) [39.37 in]
General surface   raw degreased aluminium (by the metre raw aluminium)
Weight:     0.38 kg/meter

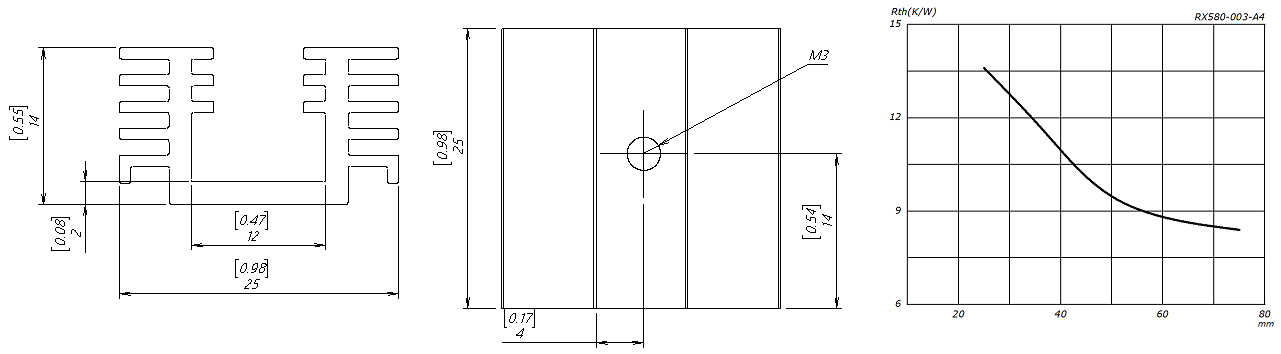

Drawing:

special lengths and drillings on request

Service
(Download Drawing format (such as PDF, CAD)

Thank you for choosing to incorporate the PCB level Heatsink series, If you need assistance, Renxin Thermal will support you with:

Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock

Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com

RX580-003-A4 Width: 25 [0.98] x Height: 14[0.55]
